Timing belt components - K8 engines (Description and operation)

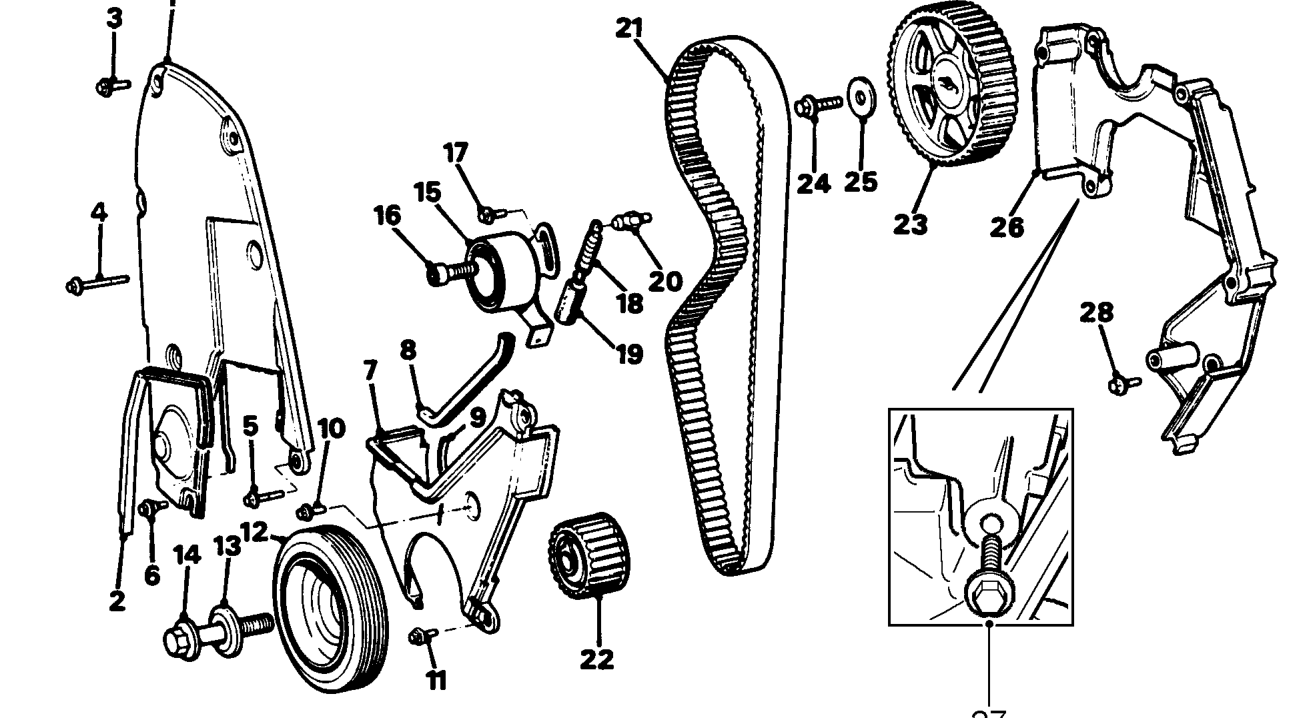

TIMING BELT COMPONENTS - K8 ENGINES

1. Upper front cover - timing belt
2. Seal - upper cover
3. Screw M6 x 16 - upper cover
4. Bolt M6 x 40 - upper cover
5. Bolt M6 x 20 - upper cover
6. Flange shoulder screw - upper cover
7. Lower cover - timing belt
8. Seal - lower cover to mounting
9. Seal - lower cover to cylinder block
10. Screw - lower cover
11. Screw M6 x 16 - lower cover
12. Crankshaft pulley
13. Special washer - pulley bolt
14. Crankshaft pulley bolt
15. Tensioner pulley and backplate
16. Allen screw - tensioner to cylinder head
17. Flange head screw - tensioner backplate
18. Tensioner spring
19. Sleeve - spring
20. Pillar bolt
21. Camshaft timing belt
22. Crankshaft timing gear
23. Camshaft timing gear
24. Camshaft gear bolt
25. Plain washer
26. Upper rear cover - timing belt
27. Screw - rear cover to coolant pump
28. Screw - rear cover
