OverhaulGearbox dismantling · page 7 of 7

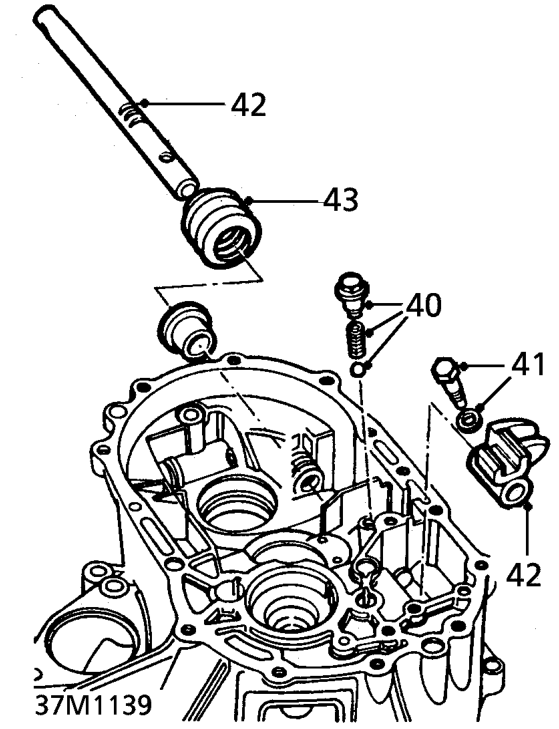

Diagram
  1. Remove detent cap bolt and washer, recover detent spring and ball.

NOTE: Use a stick magnet to recover ball.

  1. Remove bolt and washer securing selector shaft guide to shaft.
  2. Withdraw selector shaft; remove selector shaft guide.
  3. Remove gaiter from shaft.
  4. Remove and discard oil seal.

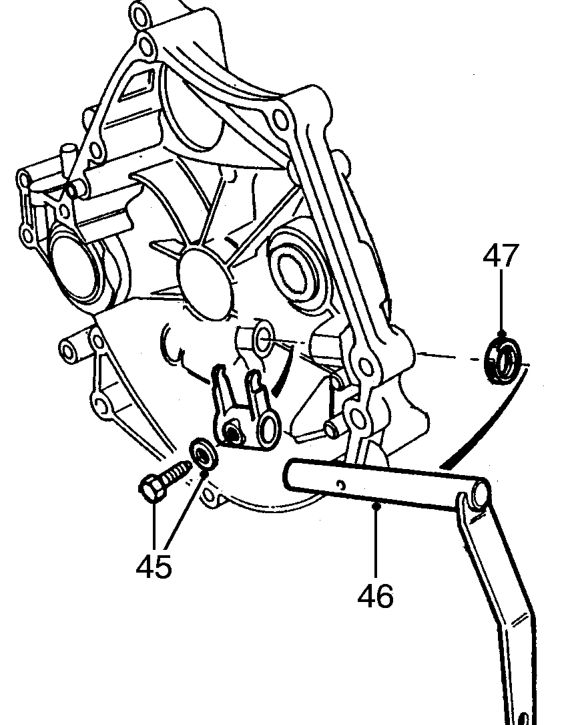

Remove and discard oil seal.
  1. Remove bolt and washer securing clutch release fork to release shaft.
  2. Withdraw release shaft.
  3. Remove and discard release shaft oil seal.
