CRANKSHAFT, MAIN AND BIG-END BEARINGS

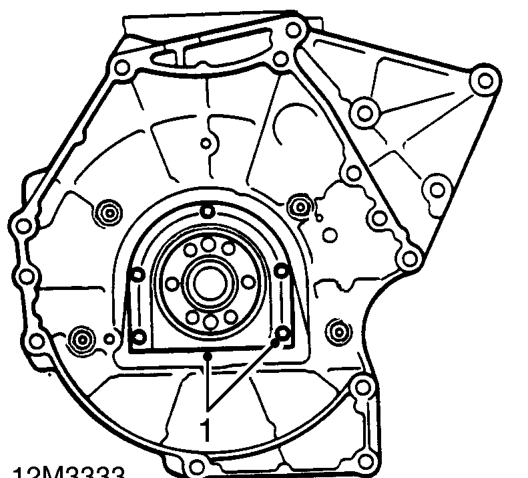

Crankshaft rear oil seal - remove

1. Remove 5 bolts securing crankshaft rear oil seal housing, remove and discard housing and oil seal.

NOTE: Housing is dowel located.

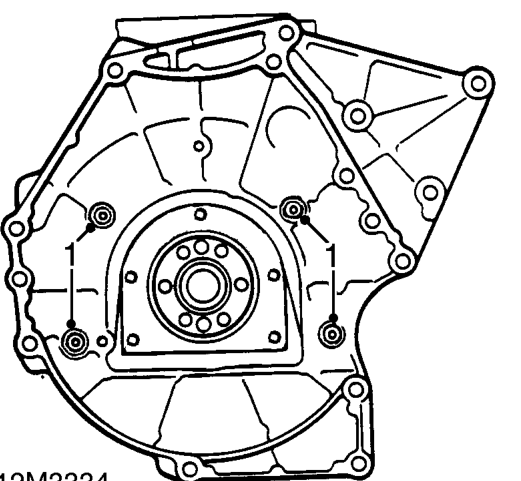

Gearbox adaptor plate - remove

1. Remove 4 Torx screws securing gearbox adaptor plate to cylinder block; remove plate.

NOTE: Adaptor plate is dowel located.
