9-2X F4-2.5L (2006)
NOTE: Wipe off any oil or water on the belt and pulley.

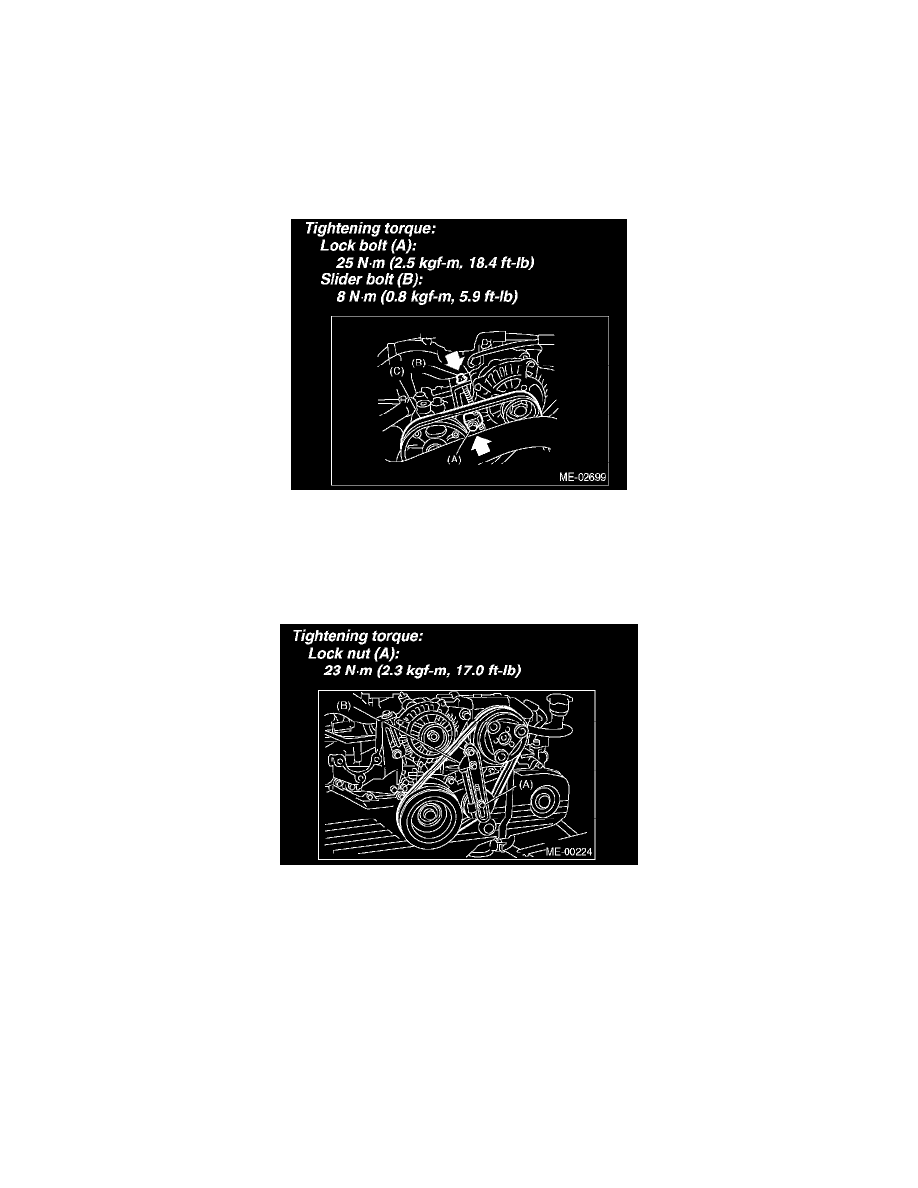

FRONT SIDE BELT
1. Install a V belt (c), and tighten the slider bolt so as to obtain the specified belt tension.
2. Tighten the lock bolt (A).
3. Tighten the slider bolt (B).
Tightening torque:
Lock bolt (A): 25 Nm (2.5 kgf-m, 18.4 ft. lbs.)
Slider bolt (B): 8 Nm (0.8 kgf-m, 5.9 ft. lbs.)
REAR SIDE BELT
1. Install the belt tensioner.
2. Install a V belt, and tighten the slider bolt (B) so as to obtain the specified belt tension.
3. Tighten the lock nut (A).
Tightening torque:
Lock nut (A): 23 Nm (2.3 kgf-m, 17.0 ft. lbs.)
Inspection
1. Replace the belts, if cracks, fraying or wear is found.
2. Remove the V-belt cover and reservoir tank. (with belt tension gauge)
3. Check the V-belt tension and adjust it if necessary by changing the generator installing position or idler pulley installing position.
Belt tension (with belt tension gauge)
(A)
When installing new parts: 618 - 755 Nm (63 - 77 kgf, 139 - 170 ft. lbs.)
At inspection: 490 - 640 Nm (50 - 65 kgf, 110 - 144 ft. lbs.)
(B)
When installing new parts: 740 - 880 Nm (75 - 90 kgf, 166 - 198 ft. lbs.)
At inspection: 350 - 450 Nm (36 - 46 kgf, 79 - 101 ft. lbs.)
