Saturn Aura V6-3.5L (2007)|Filters > < Drive Belt Chirping, Squeal, and Whine Diagnosis|Page 2870
Page 2
background image

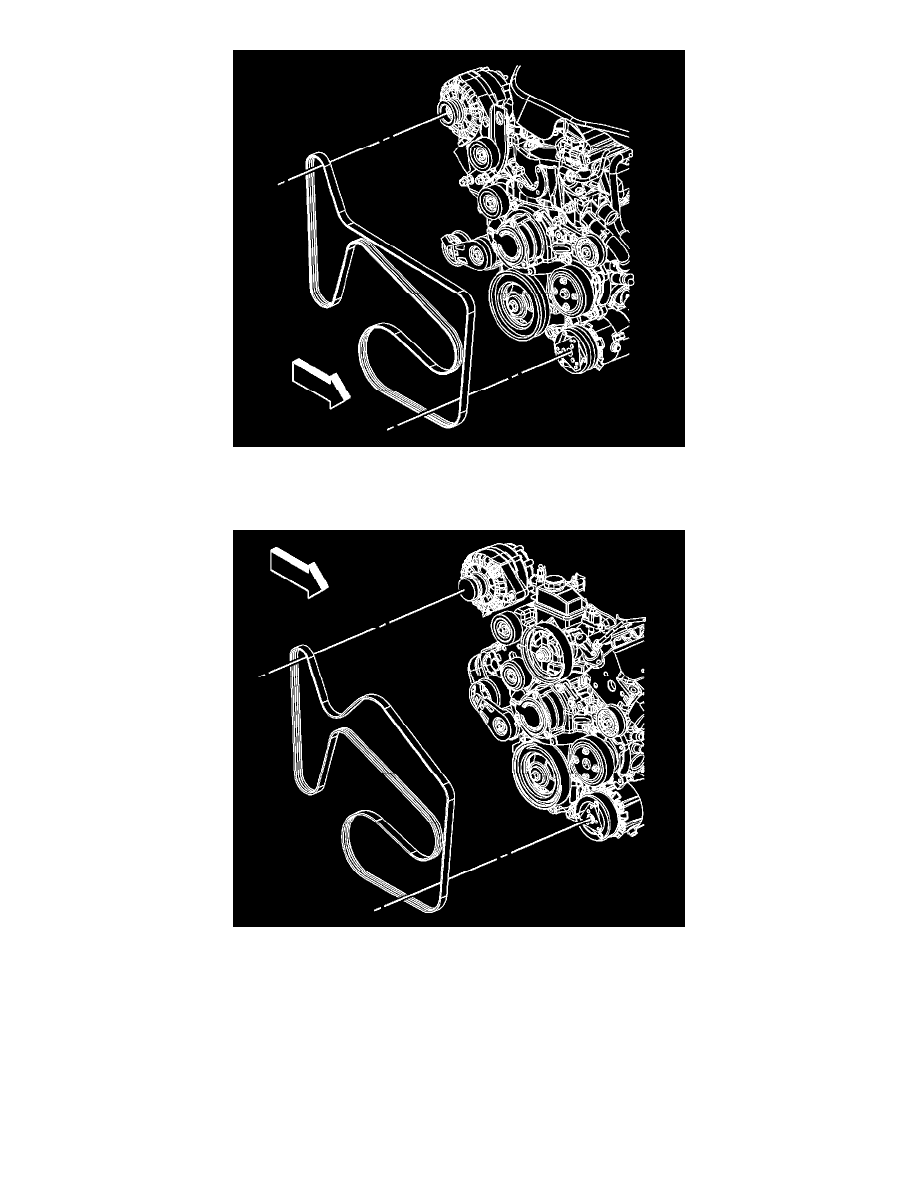

1. Install a breaker bar to the drive belt tensioner.
2. Rotate the drive belt tensioner counterclockwise to release the spring tension.
3. Route and install the drive belt, if equipped with hydraulic power steering.

4. Route and install the drive belt, if equipped with electric power steering.
5. Install the engine mount strut.
6. Install the air cleaner assembly.
