Door Switch: Diagrams

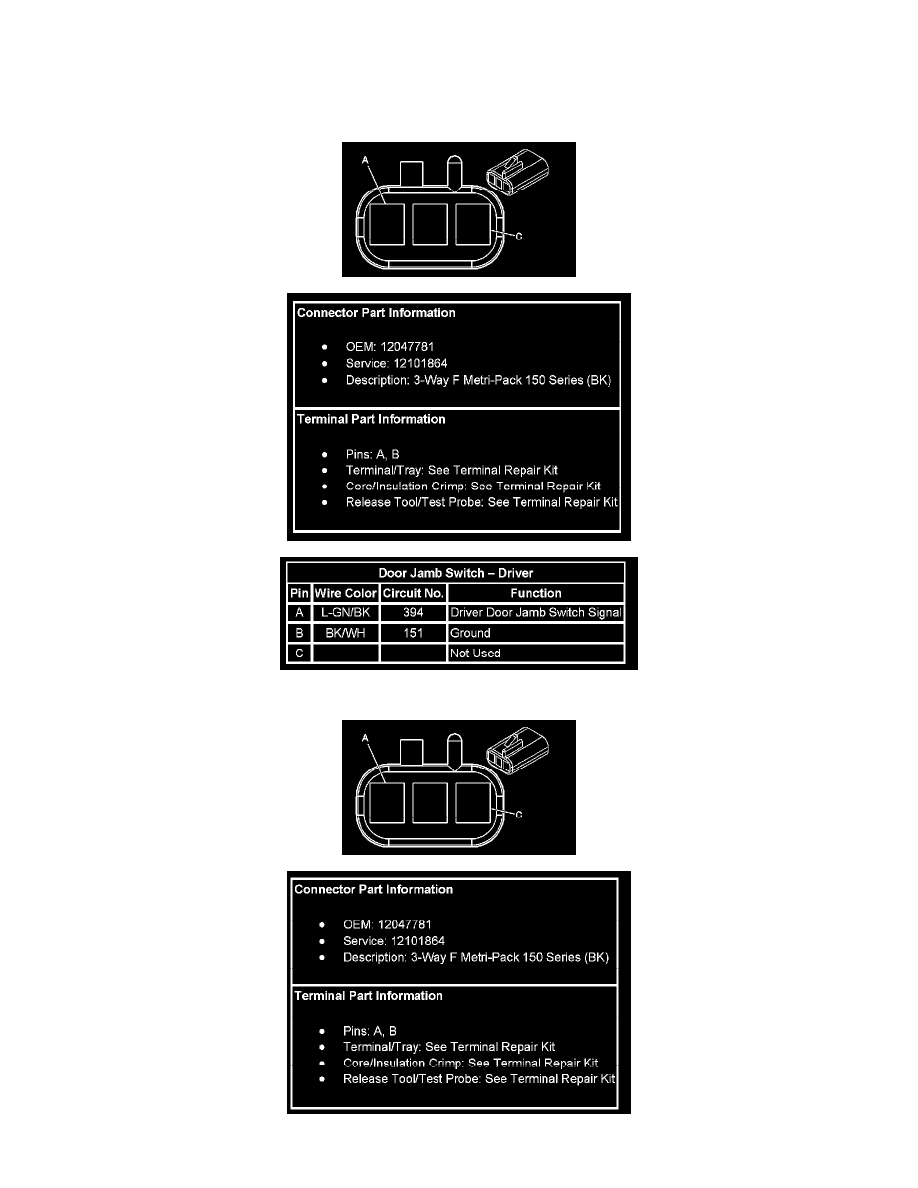

Lighting Systems Connector End Views
Door Jamb Switch - Driver
Door Jamb Switch - Front Passenger
