Fuse Block: Locations

Make

Saturn

Model

ION

Engine

L4-2.4L

Year

2007

Section

Fuse Block › Locations

Power and Ground DistributionLocations · page 1 of 3

Fuse Block: Locations

Power and Grounding Component Views

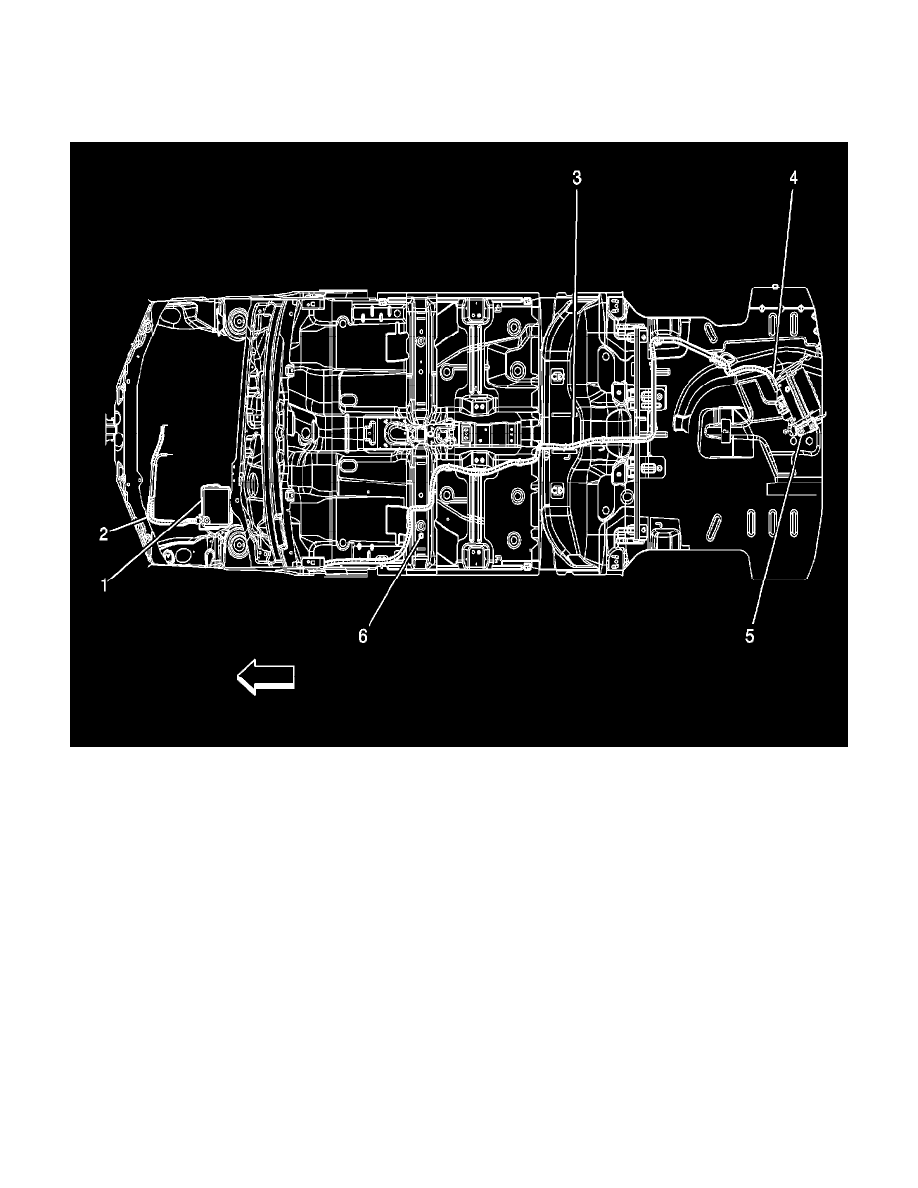

Battery Cable Routing

1 - Fuse Block - Underhood
2 - G103
3 - Battery Cable - Positive
4 - ECM Inline Fuse (2.2L)
5 - G502
6 - G301

Rear View of the Engine
