Sky L4-2.4L (2007)
Control Module HVAC: Locations

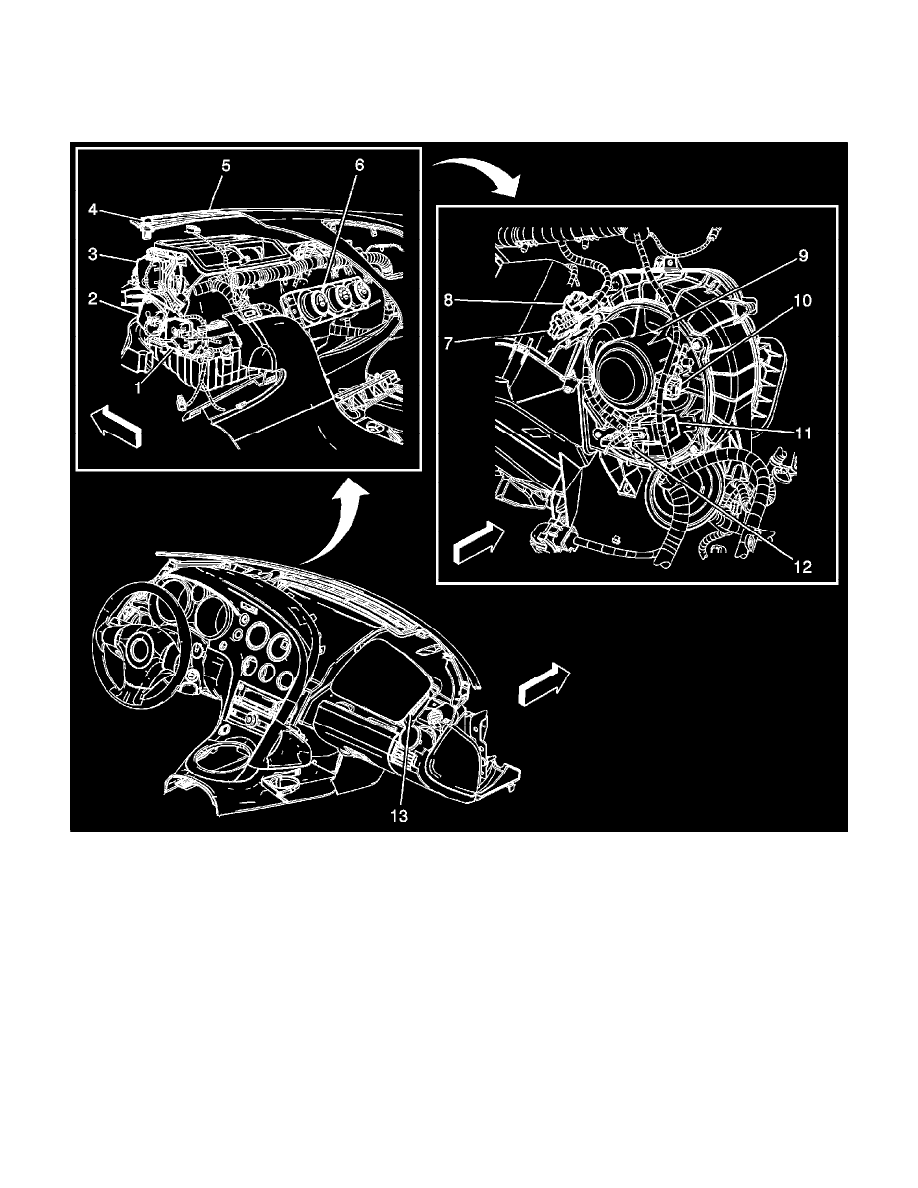

HVAC Component Views
HVAC Module Components 1 of 2
1 - Air Temperature Actuator - Right
2 - Air Temperature Actuator - Left
3 - Mode Actuator
4 - Ambient Light Sensor
5 - Air Vent Grille
6 - HVAC Control Module
7 - C216
8 - C218
9 - Blower Motor
10 - Blower Motor Connector
11 - High-Speed Blower Motor Relay
12 - Blower Motor Resistor Assembly
13 - C208
HVAC Module Components 2 of 2
