xB L4-1.5L (1NZ-FE) (2004)

Page 2
background image

Part 2 Of 2

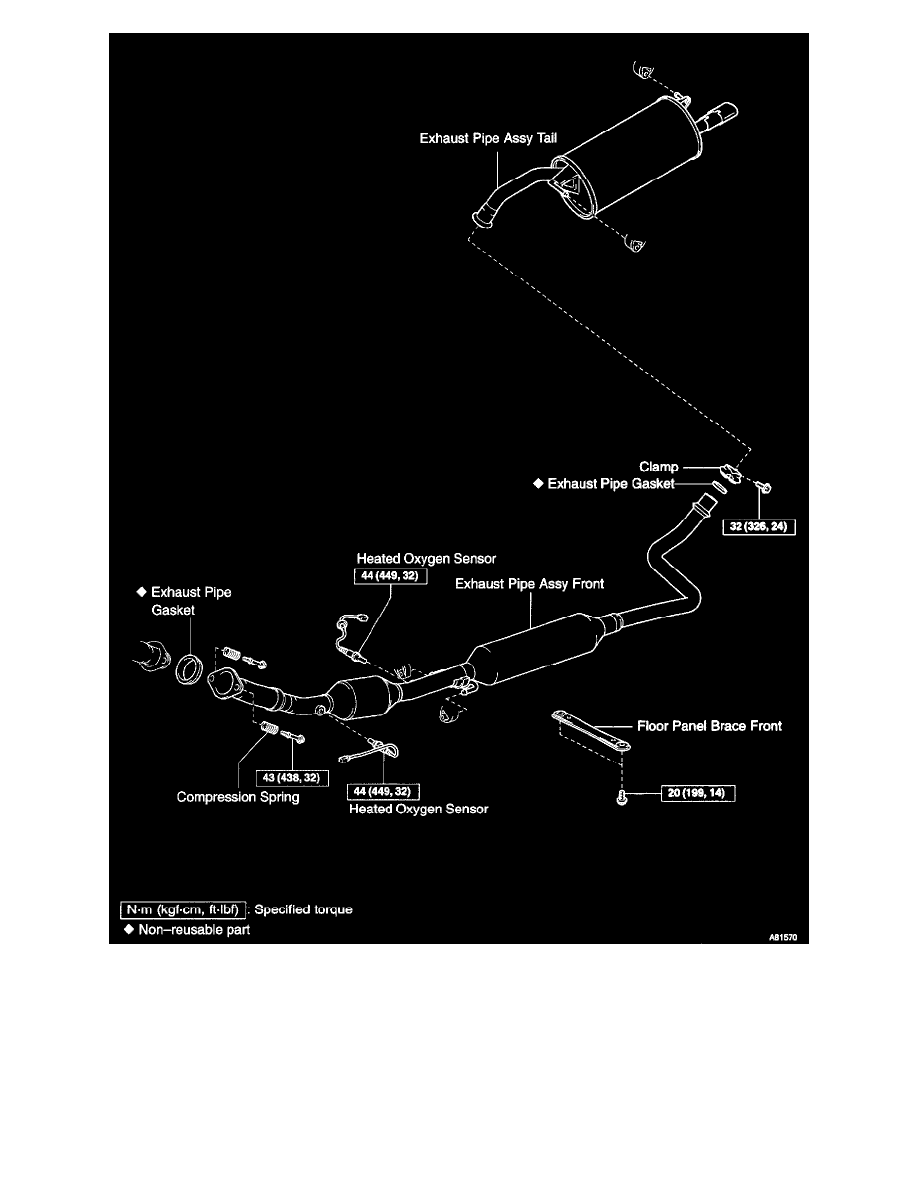

EXHAUST PIPE ASSY

Removal & Installation and Disassembly & Reassembly
1. REMOVE SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE)
2. REMOVE CONSOLE BOX ASSY REAR
