NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO CENTER AIRBAG SENSOR ASSEMBLY (CAN-H,
CAN-L)
OK -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY

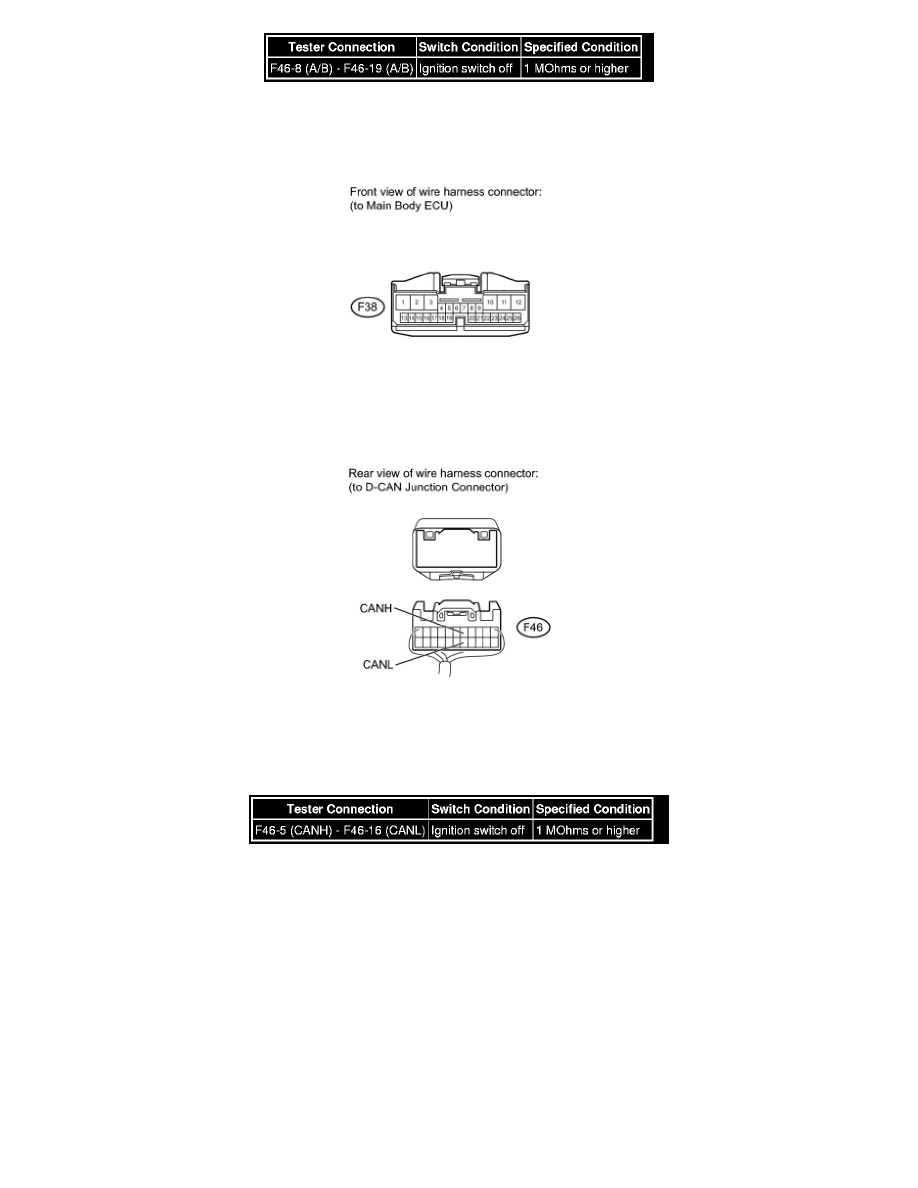

25. CHECK CAN BUS LINES FOR SHORT CIRCUIT (MAIN BODY ECU BRANCH WIRE)
(a) Disconnect the F38 main body ECU connector.
(b) Measure the resistance according to the value in the table below.
HINT: The resistance must be measured after the F46 D-CAN junction connector is disconnected.
Standard resistance:
NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO MAIN BODY ECU (CAN-H, CAN-L)
OK -- REPLACE MAIN BODY ECU
Combination Meter ECU Communication Stop Mode
CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Combination Meter ECU Communication Stop Mode
Combination Meter ECU Communication Stop Mode
DESCRIPTION
