xD L4-1.8L (2ZR-FE) (2008)
Shift Cable: Service and Repair
Installation
U341E AUTOMATIC TRANSAXLE: TRANSMISSION CONTROL CABLE ASSEMBLY: INSTALLATION
INSTALLATION
1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

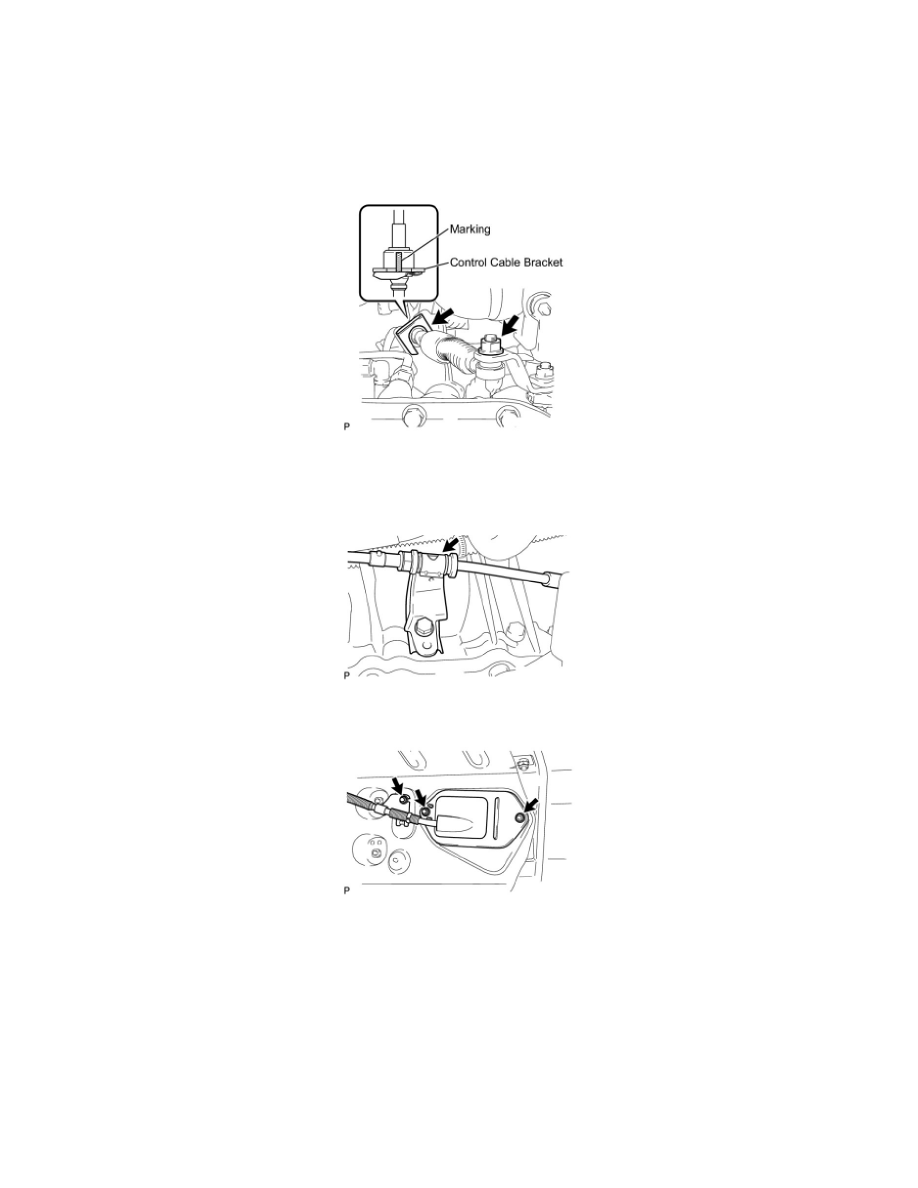

(a) Install the transmission control cable assembly onto the control shaft lever with the nut.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
(b) Fix the transmission control cable assembly onto the control cable bracket with a new clip.
NOTE: Make sure that the marking on the cable is aligned with the slit in the transmission control cable bracket before installing the cable.
(c) Connect the transmission control cable assembly to the transmission control cable support.
(d) Run the transmission control cable between the transmission control cable support and vehicle body.
(e) Install the transmission control cable assembly with the 3 nuts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
