Leon Mk1

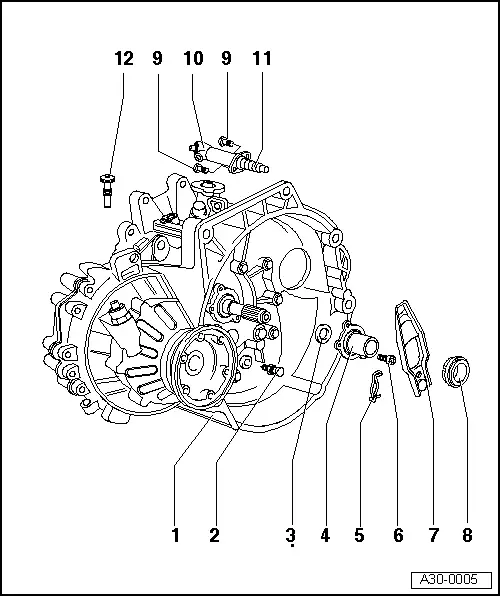

| Clutch release assembly: repairing |
| 1 - | Gearbox |
| 2 - | Spherical pivot |
| q | 25 Nm |
| q | Grease with lubricating grease MoS2 |
| 3 - | Input shaft protector ring |
| q | Renew → Item, Gearbox casing and clutch casing: repairing |
| 4 - | Guide bush |
| q | With vulcanised O-ring |
| q | Renew the guide sleeve and O-ring together if the latter is damaged |
| q | Grease the guide sleeve with lubricating grease MoS2 in the clutch collar area |
| 5 - | Support spring |
| q | Secure it to the clutch lever |
| 6 - | Cylindrical bolt |
| q | 20 Nm |
| 7 - | Clutch release lever |
| 8 - | Clutch release collar |
| q | Do not wash the collar Only clean it with a cloth |
| q | Renew collars that make a noise |
| q | Grease with lubricating grease MoS2 the contact points with the clutch release lever |
| 9 - | Combi bolt |
| q | 20 Nm |
| 10 - | Clutch coil |
| q | Removing and fitting → Item |
| 11 - | Plunger |
| q | Grease the end of the plunger with lubricating grease MoS2 |
| 12 - | Assembly bolt |
| q | Secure the clutch release lever when installing the gear box |
| q | It must be unscrewed after installing the gear box |
Note!| If there is no assembly bolt → Item a M8x25 bolt can be used. |
