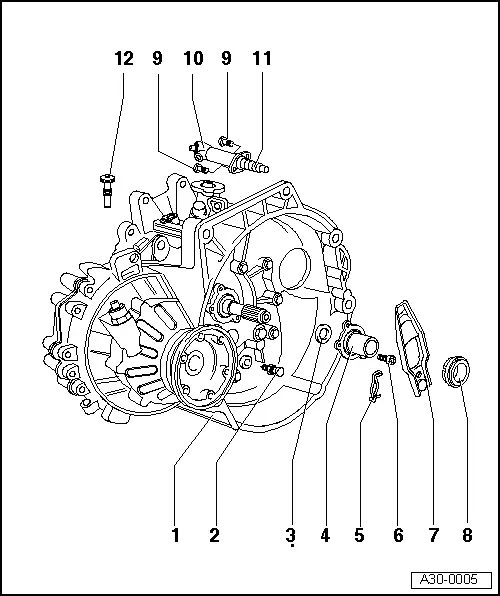

| Declutching unit: repair |
| 1 - | Gearbox |
| 2 - | Spherical pivot, 25 Nm |
| q | Grease with -MoS2- lubricant |
| 3 - | O-ring seal for main shaft |
| q | Replace → Chapter |
| 4 - | Guide sleeve |
| q | With vulcanised O-ring seal |
| q | Change the guide sleeve and the O-ring seal together should the latter be damaged |
| q | Grease the guide sleeve with -MoS2- lubricant through the area of the declutching collar |
| 5 - | Attachment spring |
| q | Attach it to the declutching lever |
| 6 - | Lag screw, 20 Nm |
| 7 - | Declutching lever |
| 8 - | Declutching collar |
| q | Do not wash the collar. It should only be cleaned with a cloth |
| q | Replace noisy clutch collars |
| q | Grease the contact points with the declutching lever with -MoS2- lubricant |
| 9 - | Bolt with collar, 20 Nm |
| 10 - | Small clutch pump |
| 11 - | Pusher |
| q | Grease the tip of the pusher with -MoS2- lubricant. |
| 12 - | Assembly bolt |
| q | Secure the declutching lever when assembling the gearbox. |
| q | It must be unscrewed after assembling the gearbox. |
Note!| If there is no assembly bolt → Item an M8×25 bolt may be used. |
