Leon Mk1
|

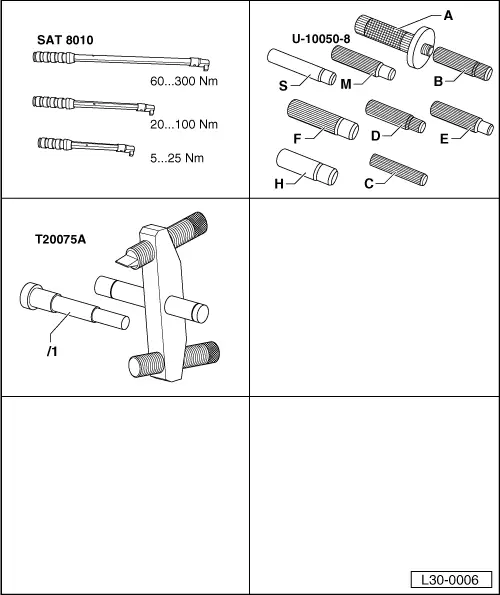

| Special tools and workshop equipment required |
| t | Dynometric keys -SAT 8010- |
| t | Centre the clutch disk with the tool -U-10050-8/F- |
| t | Tool for blocking the engine wheel -T20075A- |
Note!| t | Replace the disks and clutch presses that have damaged or loose riveted joints. |
| t | Make the disk match the corresponding clutch press, as per the Microfiche for Spares and the identification letters for the engine. |

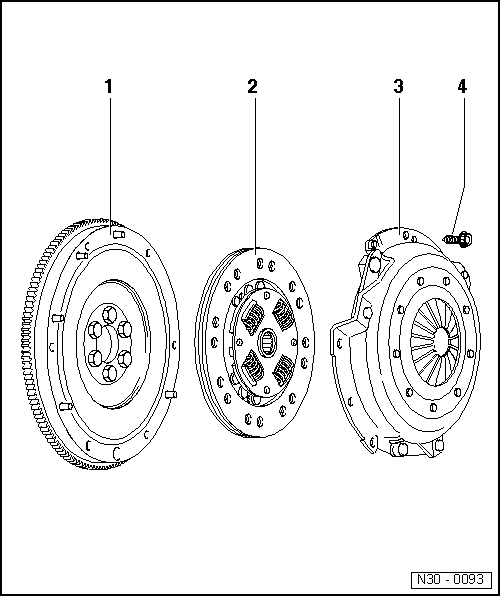

| 1 - | The engine wheel |
| q | Make sure that the centring linchpins are well placed. |
| q | The contact surface with the clutch disk should not have any grooves and they must be free from oil and grease. |
| 2 - | Disk of clutch |
| q | Diameter → Chapter |
| q | Position for assembly: the spring housing must remain facing towards the clutch press. |
| q | Grease the notches slightly. |
Note!| t | Clean the notches in the main shaft, and in the clutch disk used, remove the corrosion and apply a very fine layer of grease Spare No. -G 000 100-, on the notches in the main shaft. |
| t | Then the clutch disk must be moved back and forth over the main shaft until the hub slides smoothly across the shaft. Remove the remains of excess grease. |
| 3 - | Clutch press |
| q | Dismounting and assembling → Fig. |
| q | Check the ends of the diaphragm → Fig. |
Note!| The clutch press is now greased and protected against corrosion. Only the contact surface can be cleaned, otherwise the useful life of the clutch is reduced. |
| 4 - | Bolt |
| q | Consult the microfiche for Spares in order to assign it. |
| q | Loosen and tighten in a cross in several stages until achieving the recommended torque. |
| q | Tightening torque 20 Nm |
|
|
