Leon Mk1
| Installation |
| Carry out the following work: |
| Installation of the door lock -3- is carried out in reverse order of removal. |
| – | Tightening torque: screws -1- 18 Nm. |
Note| Bowden cables can be detached if this is necessary for subsequent work. |

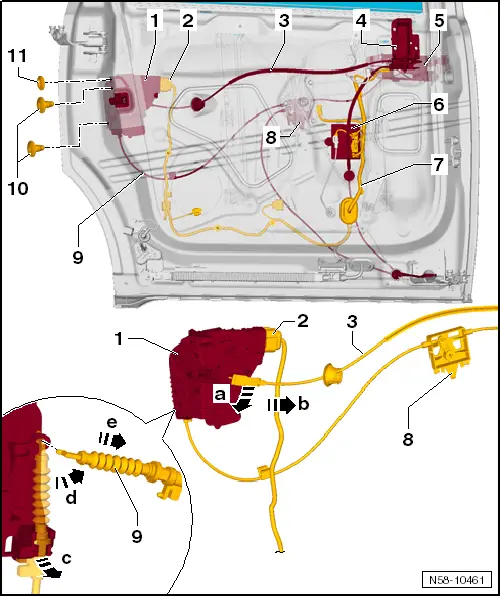

| Detaching Bowden cable leading to distributing mechanism |
| – | Unclip Bowden cable -9- from door lock -arrow a- and remove from holder -arrow b-. |
| Release Bowden cable to interior door handle |
| – | Turn Bowden cable -3- 45° and take it out of door lock -arrow c-. |
| – | Swivel Bowden cable -arrow d- so far until Bowden cable can be threaded out of eye in door lock -1--arrow e-. |
