Leon Mk1
| Actioning cable: mounting and adjusting |
Note!| t | First mount the actioning cables in the dismounted control unit and then adjust and fix the cables on the levers |
| t | Covers of actioning cables are differently coloured |
| t | Check actioning cables before mounting and substitute tight moving cables or those that present imperfections |
| t | On turning controls all flaps should audibly reach max. position |

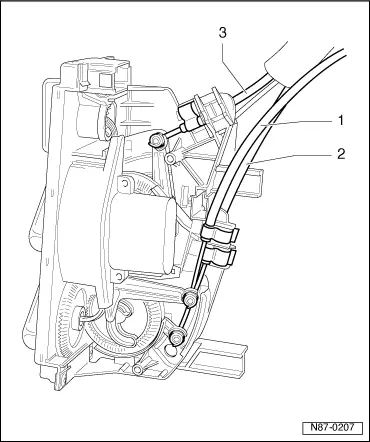

| 1 - | Actioning cable for the footwell zone/ deicer flap |
| q | From the control knob of air distributor to the footwell zone flap/deicer |
| q | Identification of the cover of the actioning cable: Left hand drive: black Right hand drive: black |
| q | Adjusting the actioning cable in the footwell zone/deicer flap → Fig. |
| 2 - | Actioning cable for central flap |
| q | Of the air distributor control knob to the central flap |
| q | Identification of the cover of the actioning cable: Left hand drive: yellow Right hand drive: grey |
| q | Adjust the actioning cable in central flap → Fig. |
| 3 - | Actioning cable for temperature flap |
| q | From the temperature control knob to the temperature flap |
| q | Identification of the cover of the actioning cable: Left hand drive: blue Right hand drive: white |
| q | Adjust the actioning cable in temperature flap → Fig. |
|
|
