Note!
Do not apply more oil or grease to the sealing side of the seal.
–
Eliminate excess oil from the camshaft journal with a clean cloth.
–

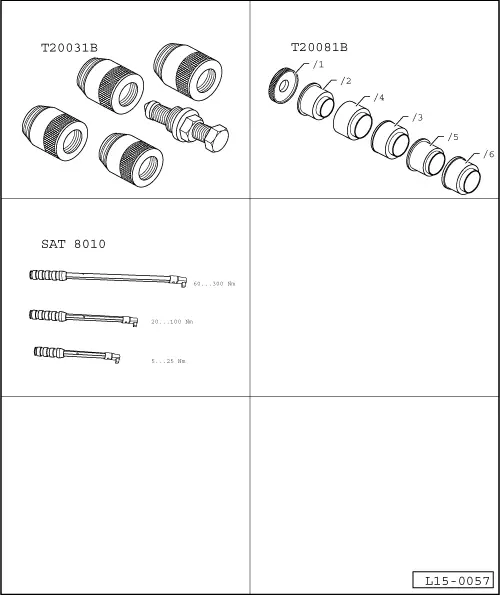

Fit the seal over the -T20081B/3- and introduce the unit into the cam-shaft. Also add the -T20081B/5-.
–
Press on the seal with pressure part of the -T20081B/1- and bolt M12X65 as far as it will go.
–
Toothed belt: fit, tighten
→ Chapter
.
–
Fit the Poly-V belt
→ Chapter
.
