Sealing flanges and engine flywheel: removing and in-stalling
Crankshaft seal - pulley side: replacing
Remove
Remove
–
Remove the Poly-V belt
→ Chapter
–
Remove the toothed belt
→ Chapter
–

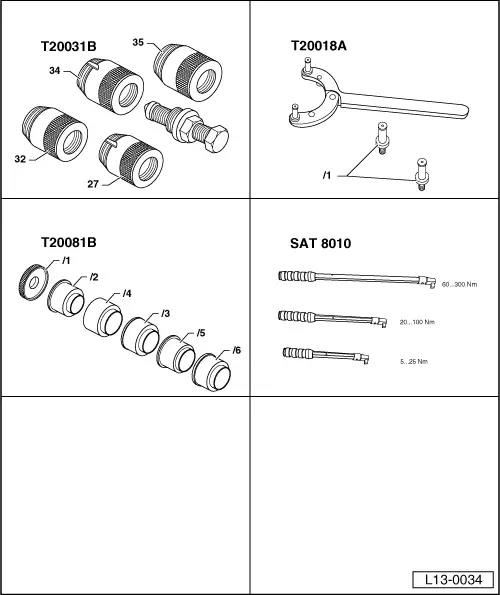

Remove the toothed belt-crankshaft pinion. To do so, immobilise the toothed belt pinion with countersupport -T20018A-.
–
Hand tighten the middle bolt in the crankshaft all the way to guide the extractor.
–
Oil the threaded head of the extractor -T20031B-/ Ø 35, apply it and, pressing hard, screw it as far as possible into the seal.
–
Turn the inner bolt interior against the crankshaft until the seal comes out.
