Leon Mk1

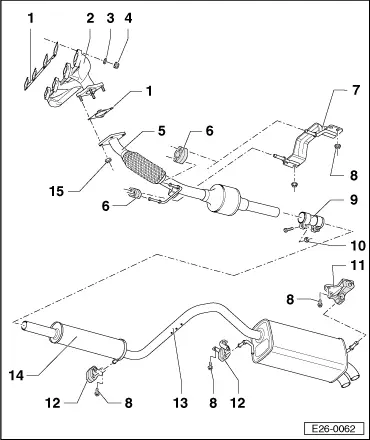

| Exhaust system: dismantling and assembling |
| 1 - | Gasket |
| q | Renew |
| 2 - | Exhaust manifold |
| q | With connection for exhaust gas recirculation → Chapter |
| q | To remove, the intake manifold has to be removed |
| 3 - | Washer |
| 4 - | 25 Nm |
| q | Renew |
| q | Grease thread with -G 052 112 A3- |
| 5 - | Front exhaust pipe with catalyst |
| 6 - | Retaining ring |
| q | Renew if damaged |
| 7 - | Cross member |
| 8 - | 23 Nm |
| 9 - | Double clamp |
| q | Note assembly position: Bolts downwards and in a horizontal position → Fig. |
| 10 - | 40 Nm |
| 11 - | Suspension element |
| q | Note assembly position → Fig. |
| 12 - | Suspension element |
| q | Note assembly position → Fig. |
| 13 - | Separating point |
| q | For repair cases |
| q | Marked by three impressions on circumference of exhaust pipe |
| q | As standard, front and main silencers come as a single component. In cases of repair the rear silencer and exhaust are supplied individually and with a double clamp for connecting. |
| q | Cut the exhaust pipe perpendicularly at the indicated point with tool -U-40075- → Fig.. |
| 14 - | To front silencer |
| q | Can be replaced individually → Fig. |
| q | Note installation position → Fig. |
| 15 - | 40 Nm |
| q | Renew |
| q | Apply insulation paste to the thread -G 052 112 A3- |
|
|
