Leon Mk1

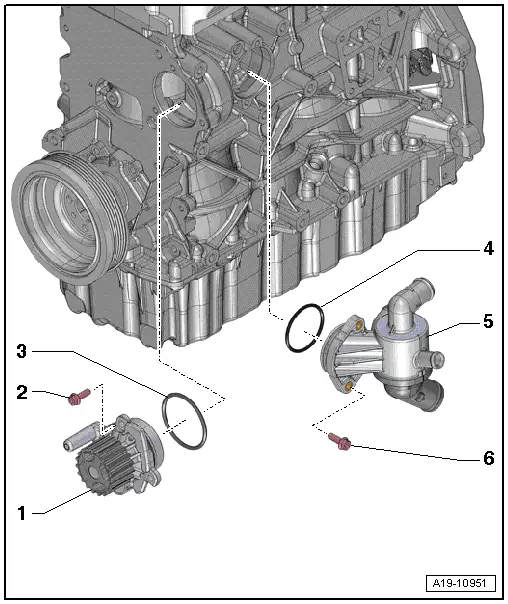

| Coolant pump and thermostat: Assembly overview |
| 1 - | Coolant pump |
| q | Removing and installing → Chapter |
| 2 - | 15 Nm |
| 3 - | O ring |
| q | Renewing |
| 4 - | O ring |
| q | Renewing |
| 5 - | 4/2-way valve with thermostat |
| q | The thermostat is located within the 4/2-way valve and cannot be replaced individually. |
| q | Removing and installing → Chapter |
| 6 - | 15 Nm |
