Leon Mk1

Check the cooling system for leaks
Check the cooling system for leaks
Consult the equivalence table for tools and equipment according to applicability among Seat / VW / Audi / Skoda → Chapter.

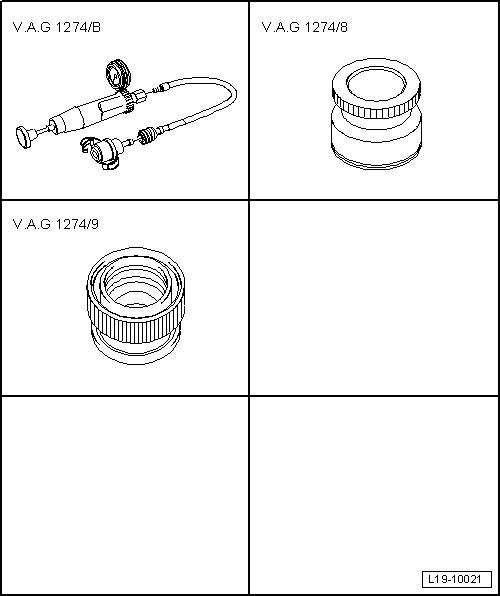

Special tools and workshop equipment required
t  Coolant tester -VAG 1274B-, see equivalent → Anchor
t  Adapter -VAG 1274/8-, see equivalent → Anchor
t  Adapter -VAG 1274/9-, see equivalent → Anchor

Test condition
l  Engine must be warm.
Checking process:
  WARNING
Steam may be released when opening the expansion tank. Cover the cap with a cloth and open carefully.
–  Open cap on coolant expansion tank.
–  Mount the cooling system tester -VAG 1274B- with adapter -V.A.G 1274/8- onto the expansion tank.
–  Clamp connector -V.A.G 1274 B/1- into adapter for cooling system tester -V.A.G 1274/8-.
–  Connect the connecting piece -V.A.G 1274 B/1- together with the connecting hose of the device to the cooling system tester -V.A.G 1274 B-
–  Use hand pump on tester to create a pressure of about 1.0 bar.
  DANGER!
Risk of scalding! Before disconnecting cooling system tester -V.A.G 1274 B- from connecting hose or connector -V.A.G 1274 B/1-, always relieve existing pressure. To do this, press pressure relief valve on cooling system tester -V.A.G 1274 B- until pressure gauge displays value of »0«.
If the pressure drops:
–  Locate and eliminate the leak in the engine compartment and underfloor. Remove the noise insulation, where necessary.
Check pressure relief valve in cap.
–  Screw cap into adapter for cooling system tester -V.A.G 1274/9-.
–  Clamp connector -V.A.G 1274 B/1- into adapter for cooling system tester -V.A.G 1274/9-.
–  Connect the connecting piece -V.A.G 1274 B/1- together with the connecting hose of the device to the cooling system tester -V.A.G 1274 B-
–  Build up pressure with hand pump on cooling system tester. In the following table, you can obtain the highest values for the respective vehicle / engine combination.

CFHCCFJACLCB
1.4 bar1.4 bar1.4 bar

The pressure relief valve must not open.
If the pressure relief valve opens prematurely:
–  Renew sealing cap.
–  Increase pressure referring to the respective vehicle / engine combination table.
The pressure relief valve must open once the opening pressure is exceeded.
If the pressure relief valve does not open:
–  Renew cap.
