Leon Mk1
Propshaft and rear final drive
Final drive, differential, differential lock
Renewing oil seal for propshaft flange at rear final drive - final drive remains installed
Detaching
Detaching
Detaching
–
Separate the rear section of the cardan shaft:
t
Propshaft, Altea XL 2009 ►, Altea XL Freetrack 2008 ►, Altea XL Freetrack 2009 ►
→ Chapter
.
t
Alhambra 2011 ►
→ Chapter
.
–
Secure the vehicle with support tool -T10038- on the lifting platform.
WARNING
If the vehicle is not strapped down, there is a great danger that the vehicle will slip off the lifting platform!
–
Unscrew hexagon nut for propshaft flange.
A -
Hexagonal bolts M10 x 25.
B -

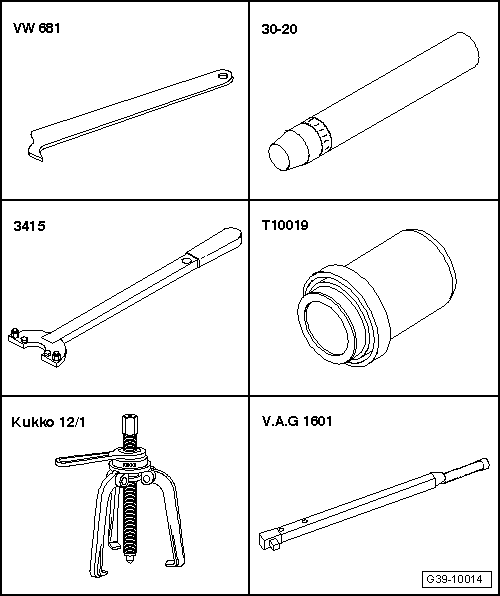

Hexagon socket bolt M8 x 15 (screwed from back side into counterhold -3415-).
WARNING
This flange is positioned relative to the toothed shaft.
–
Mark the flange with respect to the toothed shaft before removing in order to avoid subsequent vibrations in the cardan shaft.
–
Pull off propshaft flange. If this continues, use the extractor 3p -KUKKO 12/1-.
–
Drive out the seal using the extractor set -VW 681-.
