Leon Mk1

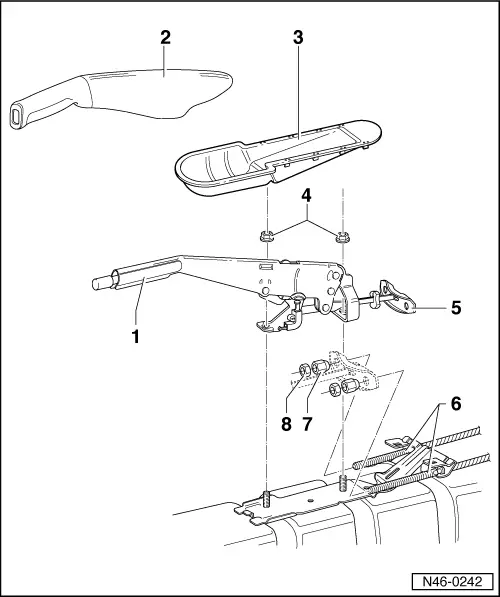

Assembly diagram: Hand brake lever |
1 - | Hand brake lever |
2 - | Handle |
q | Remove forwards, beforehand press the lug below the handle downwards with a small srewdriver |
3 - | Frame or cover for hand brake |
q | Note the version |
q | According to the version, either loosen or remove upwards |
4 - | Hexagon nut |
q | 25 Nm |
5 - | Expansion tab |
6 - | Hand brake cable |
q | Fitting and removing (note fitting position on the rear axle body): |
q | Vehicles with drum brakes → Chapter |
q | Vehicles with disc brakes → Chapter |
7 - | Re-adjusting bolt |
q | Hand brake: setting |
q | Vehicles with drum brakes → Chapter |
q | Vehicles with disc brakes → Chapter |
8 - | Hexagon nut |
q | Countertighten with the adjusting nut |
