Leon Mk1

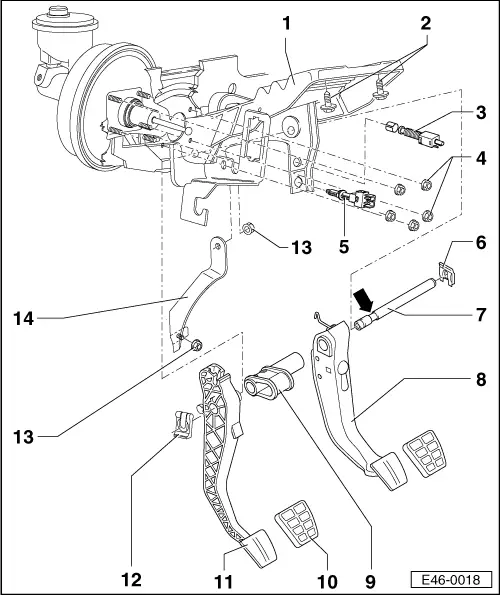

| Brake pedal - Assembly overview |
Caution
|
Note!| Grease all mountings before installing with grease -G 000 602-. |
| 1 - | Mounting bracket |
| 2 - | Hexagon bolt, 25 Nm |
| 3 - | Brake pedal switch -F47- |
| q | For engine control unit |
| q | Checking or adjusting → Rep. Gr.24 |
| 4 - | Self-locking hexagon nut, 25 Nm |
| q | Qty. 5, to secure mounting bracket to brake servo |
| 5 - | Brake light switch |
| q | Removing and installing |
| q | Before installing brake light switch, connect brake pedal to brake servo push rod |
| 6 - | Securing clip |
| q | Ensure seated securely |
| 7 - | Pivot pin for brake and clutch pedals |
| q | Installation position: The groove -arrow- is located on the clutch pedal side. |
| 8 - | Brake pedal |
| 9 - | Mounting bush |
| q | To support casing |
| 10 - | Pad |
| 11 - | Clutch pedal |
| q | Removing and installing → Rep. Gr.30 |
| 12 - | Securing clip |
| q | Ensure seated securely |
| 13 - | Hexagon nut, 25 Nm |
| 14 - | Support |
