Removing and installing rear left vehicle level senderG76
Removing and installing rear left vehicle level sender -G76-
Special tools and workshop equipment required

t  Torque wrench -V.A.G 1331-
Removal:

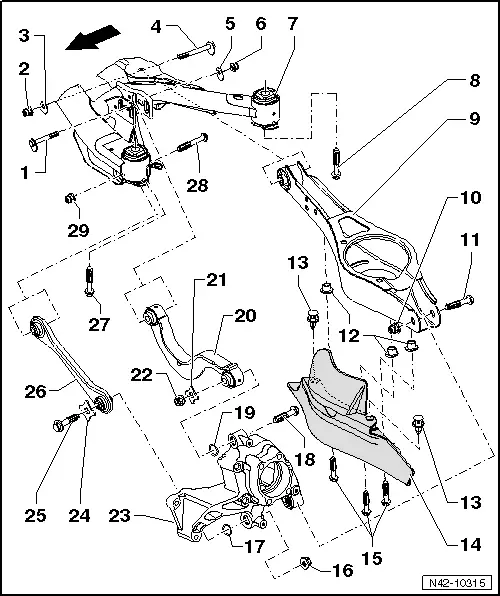

  W00-0427
–  Unplug connector -1-.
–  Remove bolts -2- from lower transverse link.
–  Remove subframe bolts -3-.
–  Remove rear left vehicle level sender -G76-.
Installation
Installation is carried out in reverse order. In the process, note the following:
The lever of rear left vehicle level sender -G76- must face outside of vehicle.
–  Perform basic setting of headlights following replacement → Vehicle diagnostic tester.
  N42-10510
Specified torques
ComponentTightening torque
Rear left vehicle level sender -G76- to lower transverse link and subframe5 Nm
