Leon Mk1

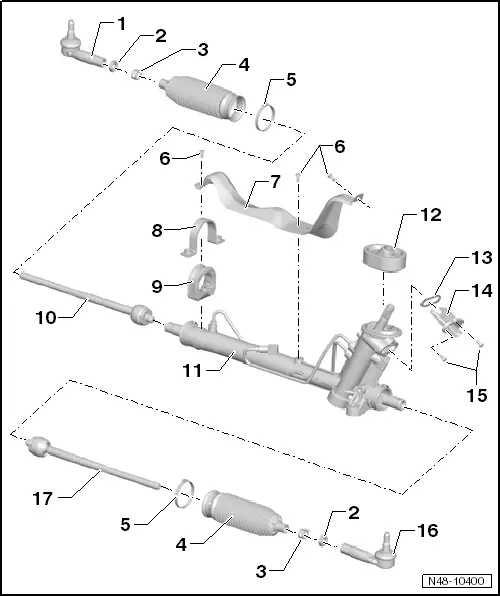

Dismantling and assembling the steering box |
1 - | Right track rod joint |
q | removing and fitting → Chapter |
q | Installation position → Anchor |
2 - | 50 Nm |
3 - | Spring-type hose clip |
q | Remove and fit with the pliers -T20029- |
4 - | Bellows |
q | Can only be replaced with the steering box removed |
q | Before proceeding with the removal of the dustguard, the track rod joint -1- must be removed |
q | Installing → Anchor |
5 - | Retaining clip |
q | replace |
q | Open with pliers |
q | Installing → Anchor |
6 - | 6 Nm |
q | For securing the thermal protection plate → Item |
7 - | Heat shield |
q | Depending on version |
8 - | Clip |
q | Replace in case of damage to the thread of the impression nut |
9 - | Rubber |
q | Observe the position when fitting: The groove must be aligned to the rear. |
q | Replace if damaged or worn |
10 - | Right-hand track rod, 80 Nm |
q | removing and fitting → Chapter |
q | Replacement part supplied pre-set |
q | Adjusting toe → Chapter. |
11 - | Power steering box |
q | No repair work can be done |
q | removing and fitting → Chapter |
q | Checking the centring → Chapter |
q | Adjusting → Chapter |
12 - | Seal |
13 - | Seal |
q | replace |
14 - | Power steering sensor -G250- |
q | For ABS Brake Systems |
q | For ESP brake systems, up to week 22/2010 |
q | Will not be installed in ESP brake systems, from week 22/2010 |
q | removing and fitting → Chapter |
15 - | 5 Nm |
16 - | Left track rod joint |
q | removing and fitting → Chapter |
q | Installation position → Anchor |
17 - | Left-hand track rod, 80 Nm |
q | removing and fitting → Chapter |
q | Replacement part supplied pre-set |
q | Adjusting toe → Chapter. |
