SEAT Leon Mk106 · Vehicle electrics
06 · General

Steering column electronics control unitJ527

Make
SEAT
Model
Leon Mk1
Section
Radio, Telephone, Navigation › Infotainment › Steering column electronics control unitJ527
Vehicle electricsSteering column electronics control unitJ527

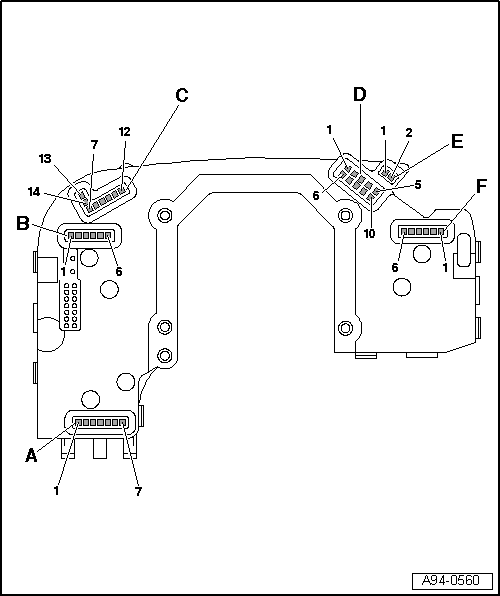

Front side
Steering column electronics control unitJ527 – SEAT Leon Mk1
A - Connector for cruise control system
1 - Terminal 31
2 - Fit
3 - Distance
4 - Terminal 30
5 - Resume/touch function (Off)
6 - Acceleration/deceleration
7 - Locked (Off)
B - Connector for turn signal
1 - Terminal 31
2 - Not used
3 - Not used
5 - Headlight flasher/light control
6 - Turn signal indicators
C - Connectors for multi-function steering wheel
7 - Tiptronic (-)
8 - Multi-function steering wheel (terminal 30)
9 - Multi-function steering wheel (LIN data bus)
10 - Tiptronic (+)
11 - Multi-function steering wheel dimmer
12 - Not used
13 - Not used
14 - Not used
D - Steering angle sender -G85-
1 - Light barrier 5
2 - Light barrier 3
3 - Light barrier 1
4 - Terminal 30
5 - Voltage supply (5 V)
6 - Light barrier 6
7 - Light barrier 4
8 - Light barrier 2
9 - Terminal 31 (steering angle sender)
10 - Light barrier 7
E - Horn -H1-
1 - Terminal 31
2 - Horn
F - Wiper system
1 - Terminal 31
2 - Intermittent wipe potentiometer
3 - On-board computer
5 - Wash
6 - Wipe



The same page in: Leon Mk2.
