Leon Mk2

Fitting
Fitting
–  Fit the clutch press.

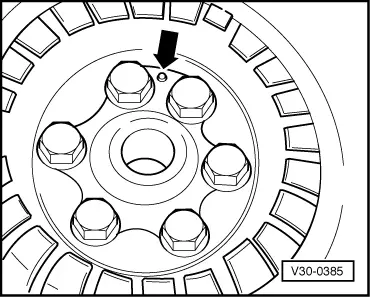

–  Fit the intermediate plate so that the projection -arrow- faces the flywheel.
–  Tighten the securing bolts to a torque of 60 Nm + 1/4 turn (90°). To do this, lock the pressure plate with tool -U-40009-.
  V30-0385

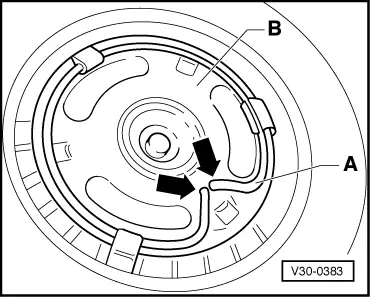

–  Fit the clutch release plate -B- and secure it to the clutch press with circlip -A-. Insert both ends of the circlip through the holes in the clutch press -arrows-.
–  Apply a very thin layer of -G 000 100- grease to the clutch plate splines. Then move the plate from one end of the input shaft to the other until it slides freely on the shaft. Remove excess grease.
–  Place the clutch plate and flywheel assembly on the press.
  V30-0383

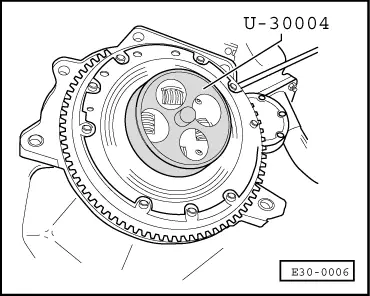

–  Fit the centring tool -U-30004- and tighten the bolts to the flywheel diagonally and alternately to a torque of 20 Nm.
  E30-0006
