SEAT Leon Mk201 · Power transmission
01 · Transmission

Identifying the gearbox (02K 5-speed manual gearbox)

Make
SEAT
Model
Leon Mk2
Section
02K 5-speed manual gearbox › Technical data › Identifying the gearbox
Power transmissionIdentifying the gearbox
Identifying the gearbox

Location on the gearbox
The 02K 5-speed manual gearbox is fitted to the Ibiza, Córdoba and Córdoba Vario 1999 ►, combined with the 4 cylinder engine.

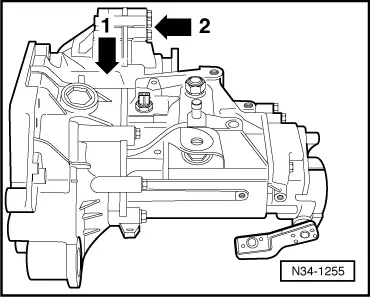

Code letters and date of manufacture -arrow 1-, type of gearbox -arrow 2-.
  N34-1255

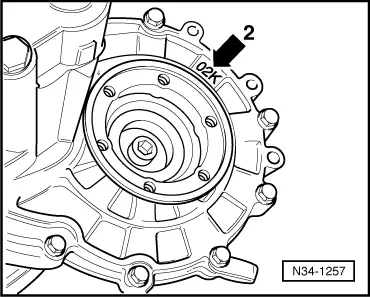

Type of gearbox
02K 5-speed manual gearbox -arrow 2-.
  N34-1257
Code letters and date of manufacture of gearbox -arrow 1-
  N34-1256
Example:EAY09079
 IIIl
 IIIl
 Code
letters
DayMonthYear -1999-
of manufacture

The additional data refers to the manufacturing process.
Identifying the gearbox (02K 5-speed manual gearbox) – SEAT Leon Mk2  Note!
The gearbox code letters are also on the customer vehicle service schedule.
