Leon Mk2
Body
General body repairs, exterior
Front door, central locking / Front door / moving_and_installing_lock_cylinder/">Removing and installing lock cylinder
Installation
Installation
Installation
Lock cylinder has been inserted into door handle.
–
Clamp the door handle in a vice with protective jaws.
–
Place bearing
-1-
and carrier -2- on lock cylinder.
–

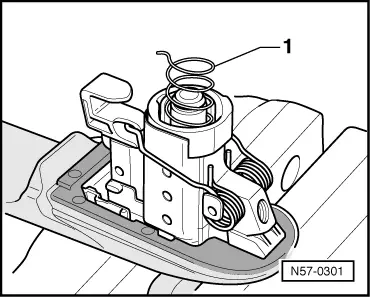

Insert the torsion spring
-1-
in the lock cylinder housing so that the point of the torsion spring is towards the rear.
–

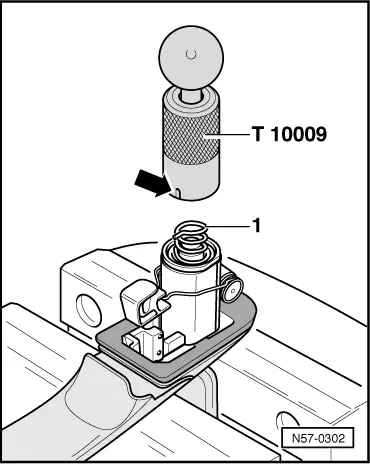

Place the assembly tool -T 10009- with the narrow slot
-arrow-
on the torsion spring
-1-
.
–

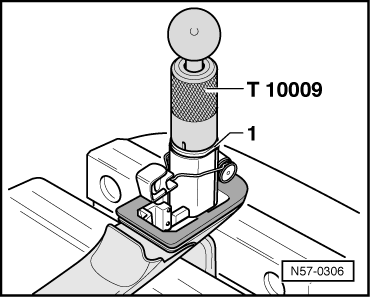

Push down outer sleeve of assembly tool until it is lying on bearing
-1-
.
Note
To make the following assembly steps clearer, the assembly tool is shown in a cutaway view.
–
Turn assembly tool -T 10009- through 180° until slot
-arrow-
is pointing forwards.
–
Push down central rod
-1-
of assembly tool -T 10009-. This compresses the torsion spring.
–
End of torsion spring now jumps out of slot in assembly tool and engages in bearing.
–
Now carefully lift outer sleeve
-1-
of assembly tool.
Now the central rod
-2-
, which is pushed over the lock cylinder, becomes visible.
–
Lift assembly tool -T 10009- until groove in lock cylinder can be seen.
–
The torsion spring
-1-
must engaged in bearing
-arrow-
.
–

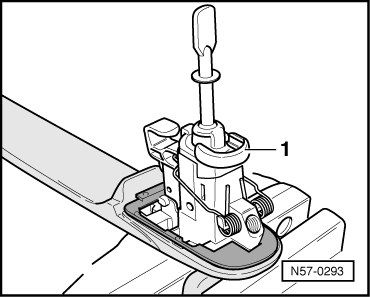

As an aid, the torsion spring can be pushed into the slot in the lock cylinder using a small screwdriver.
–
Remove assembly tool.
–
Fit paddle
-1-
onto the torsion spring and push it down.
–
Circular motions of the paddle release the torsion spring from the slot in the lock cylinder and allow it to be compressed further.
–
Insert lock washer
-1-
.
l
Then check for correct operation.
