Leon Mk2

Gearbox, removing and fitting

Gearbox, removing and fitting
Consult the equivalence table for tools and equipment according to applicability among Seat / VW / Audi / Skoda → Chapter.

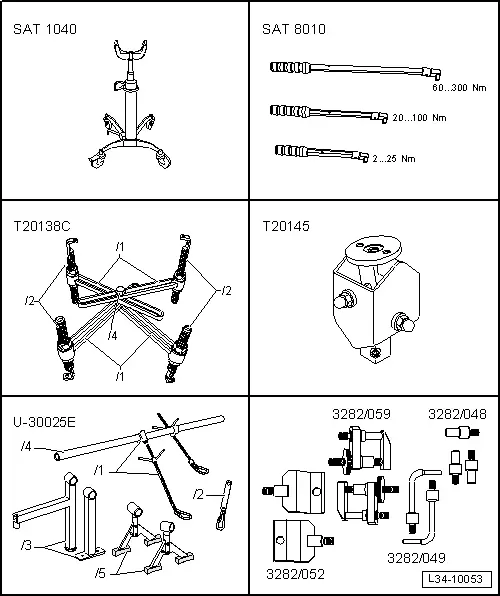

Special tools and workshop equipment required
t  Hydraulic jack -SAT 1040-, see equivalent → Anchor
t  Torque wrench kit -SAT 8010-, see equivalent → Anchor
t  counterhold -T20138C -, see equivalent → Anchor
t  Underlay -T20145- with
t  Hydraulic engine and gearbox jack adapter -SAT 1001/1-
t  Socket -U30025E -, see equivalent → Anchor
t  Adjustment plate -3282/048-

Special tools and workshop equipment required

t  Hose clamp -U-30042 -, see equivalent → Anchor
  W00-2165

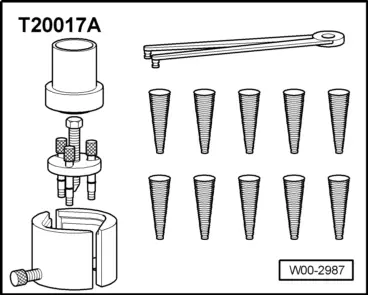

t  Kit (case) -T20017A-
t  → Chapter „Removing gearbox “.
t  → Chapter „Installing gearbox“.
  W00-2987
