Leon Mk2

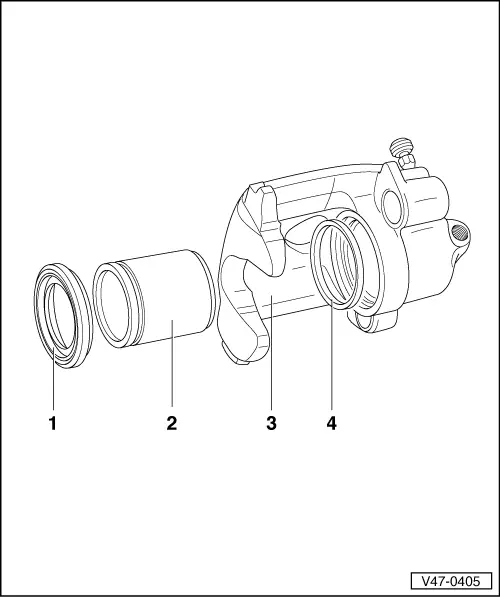

| Servicing VW II front brake caliper |
Note!| t | When carrying out repairs install all parts supplied in repair kit. |
| t | New brake calipers are filled with brake fluid and are pre-bled. |
| t | Apply thin coat of fitting paste -G 052 150 A2- to brake cylinders, pistons and seals. |
| 1 - | Protective seal |
| q | Do not damage when inserting piston |
| 2 - | Piston |
| q | Removing and installing → Chapter |
| q | First apply a thin coat of fitting paste -G 052 150 A2-. |
| 3 - | Brake caliper housing |
| 4 - | Seal |
| q | Removing and installing → Chapter |
