Leon Mk2

Instructions for changing/fitting wheels
Instructions for changing/fitting wheels
  WARNING
Firm fit of wheel bolts and wheels can only be guaranteed when observing the tests and instructions listed below.

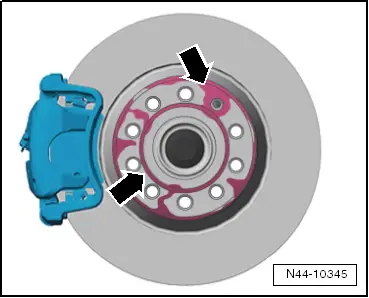

–  Check that the contact surfaces -arrows- on the brake discs are free from corrosion and dirt.
  N44-10345

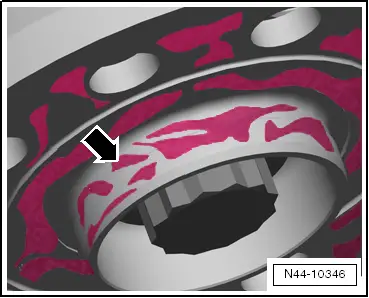

–  Check to ensure that contact surface -arrow- on centring seat of brake disc are free of corrosion and dirt.
  N44-10346

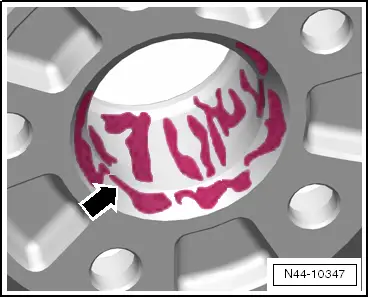

–  Check to ensure that contact surface -arrow- on inner side of wheel (rim) and also centring seat of rim are free of corrosion and dirt.
–  The collars x of the openings for the wheel bolts and the threads of these wheel bolts must also be free from corrosion, dirt, oil or grease.
* The collar is the curved surface of the ball segment.
  N44-10347

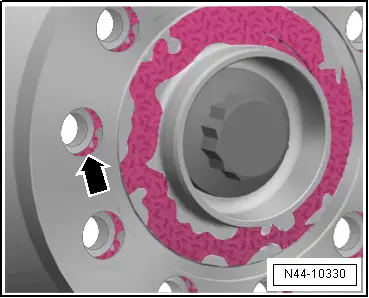

–  Check whether the wheel bolts can be easily screwed in by hand. The thread of the wheel nuts should not come into contact with the brake disc opening -arrow-.
If the thread of the wheel bolt touches the opening -arrow-, turn the brake disc as necessary.
Remove dirt and corrosion, oil or grease from the contact surfaces, threads in the wheel hub and / or wheel bolts as necessary.
  WARNING
Wheel bolts that are damaged, severely corroded or are difficult to remove must be replaced.
  N44-10330
