Tyres: removing > < Removing

Leon Mk2

Fitting
Fitting

–  Carefully screw the knurled nut -1- onto the thread, and tighten it by hand.
Ensure that the nut is screwed on straight onto the thread -1-!
–  Place the new bottle of tyre sealant into the support.
  N44-0166
–  Turn the bottle clockwise as far as possible onto its support.

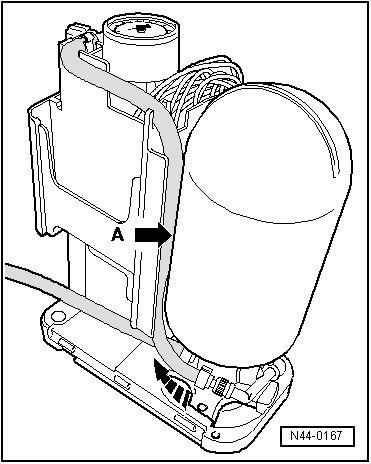

–  Attach the hose -arrow A- to the guide.
–  Roll up the compressor cable with the power supply connector, and place it inside the space below the manometer.
–  Fit the case.
–  Roll up the hose with the tyre valve connector, and place it inside the case.
  N44-0167

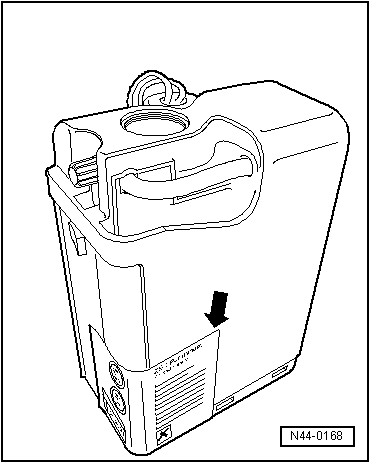

–  Attach the new sticker of the repair kit onto the case -arrow-.
  N44-0168
