Fabia Mk1

Removing and installing coolant regulator
Removing and installing coolant regulator
Special tools and workshop equipment required
t  Catch pan, e.g. -VAS 6208-
t  Pliers for spring strap clamps
Removing
  Note
Always replace seals and gasket rings.

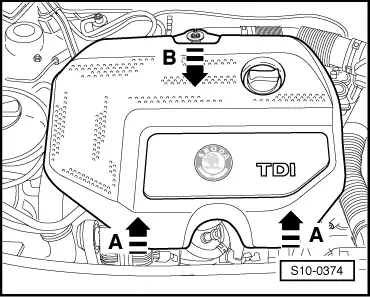

–  Lift the engine cover at the sides -arrows A- and pull out towards the front -arrow B-.
–  Drain coolant → Chapter.
  Note
Collect drained coolant in a clean container for proper disposal or reuse.
  S10-0374

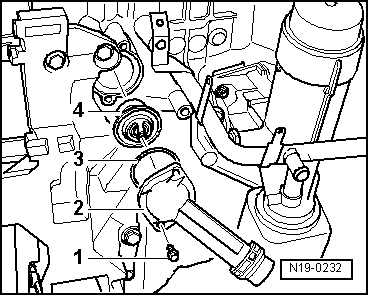

–  Remove coolant hose from connection fittings -2-.
–  Unscrew bolts -1- attaching connection and remove connections -2- together with coolant thermostat -4-.
–  Turn coolant thermostat -4-1/4 turn (90°) to the left and remove from connection fittings -2-.
Install
Installation is carried out in the reverse order. Pay attention to the following:
–  Clean sealing surface for O-ring.
  N19-0232
–  Moisten new O-ring -3- with coolant and insert on connection fitting -2-.
–  Fit coolant regulator -4- in the connection fitting -2- and turn 1/4 turn. (90°) to the right.
  Note
Coolant thermostat arms must be virtually vertical.
–  Insert the connection fitting -2- with coolant regulator -4- in the cylinder block.
–  Tighten fixing screws -1- to 15 Nm.
–  Top up coolant → Chapter.
  N19-0232
