Fabia Mk1

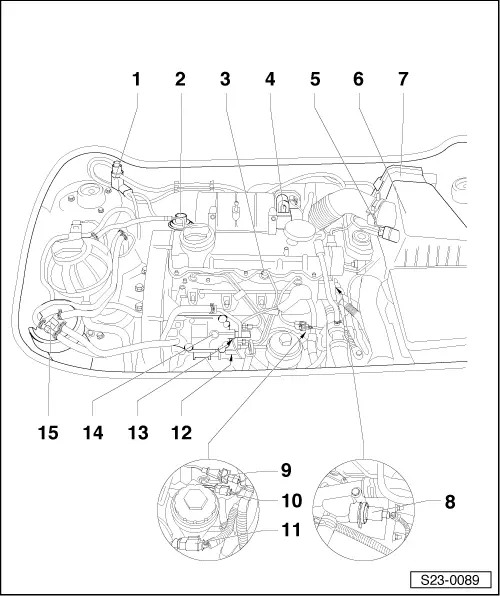

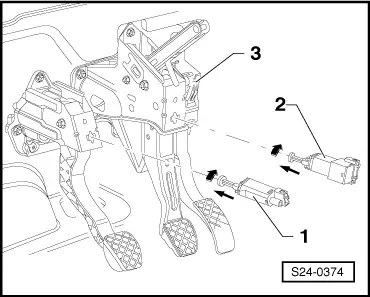

| Overview of fitting locations |
| Components A through G are not represented in the overview figure. |
| A - | Diesel direct injection system relay -J322- |
| q | on relay carrier → Fig. |
| B - | Glow plug relay -J52- |
| q | on relay carrier → Fig. |
| C - | Low heat output relay -J359- |
| q | on relay carrier → Fig. |
| D - | High heat output relay -J360- |
| q | on relay carrier → Fig. |
| E - | Accelerator pedal position sender -G79- |
| q | in footwell on the accelerator pedal → Fig. |
| F - | Brake light switch -F- and Brake pedal switch -F47- |
| q | in footwell on the brake pedal → Fig. |
| G - | Clutch pedal switch -F36- |
| q | in footwell on the clutch pedal → Fig. |
| 1 - | Exhaust gas recirculation valve -N18- |
| 2 - | Mechanical exhaust gas recirculation valve |
| 3 - | Injection nozzle with needle lift sender -G80- |
| 4 - | Intake manifold flap motor -V157- |
| 5 - | Intake manifold temperature sender -G72- |
| 6 - | Air filter |
| 7 - | Diesel direct injection system control unit -J248- |
| 8 - | Sender for the coolant temperature -G62- |
| q | before removing, reduce pressure in cooling system if necessary |
| 9 - | Plug connection |
| q | 2-pin, brown |
| q | for needle lift sender -G80- |
| 10 - | Plug connection |
| q | 3-pin, grey |
| q | for engine speed sender -G28- |
| 11 - | Plug connection |
| q | 10-pin, black |
| q | for fuel temperature sender - G81- |
| q | for Metering adjuster -N146- |
| q | for modulating piston movement sender -G149 - |
| q | for Commencement of injection valve -N108 - |
| q | for Fuel shut-off valve -N109- |
| 12 - | Fuel shut-off valve -N109- |
| 13 - | Commencement of injection valve -N108- |
| 14 - | Metering mechanism of the injection pump |
| q | with fuel temperature sender -G81- |
| q | with Metering adjuster -N146- |
| q | with Modulating piston movement sender -G149- |
| 15 - | Fuel filter |
| q | repairing → 1.9/47 SDI Engine, Mechanics; Rep. Gr.20 |
|
|
|
|
