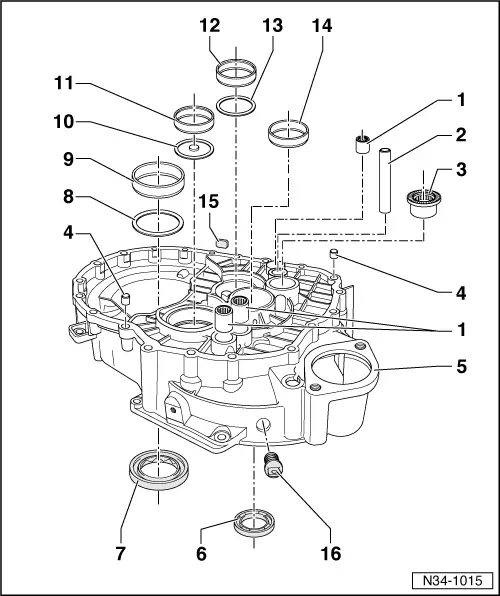

Repairing the clutch housing for gearbox up to gearbox manufacturing date 06.03 Special tools and workshop equipment required t  Thrust piece -MP3-423 (VW 407)- t  Bushing -MP3-424 (30-21)- t  Centering mandrel -T30029 (3176)- t  Pressure plate -T40008- t  Interior extractor 14.5...18.5 mm e.g. - Kukko 21/2- t  Interior extractor 23.5...30 mm e.g. - Kukko 21/4- t  Countersupport e.g. -Kukko 22/1 - t  Countersupport e.g. -Kukko 22/2 -

1 -

Bushing

q	for selector rods

q	replace after each disassembly → electronic catalogue of original parts

q	removing → Fig.

q	inserting → Fig.

2 -	Shaft for reverse gear shift fork

q	Shaft cannot be removed with workshop tools

q	When using a new clutch housing a new shaft must be pressed in → Fig.

3 -	Needle bushing

q	replace after each disassembly → electronic catalogue of original parts

q	removing → Fig.

q	installing → Fig.

4 -	Fitting sleeve

q

2 pieces

5 -	Clutch housing

q	if replaced: Setting the drive shaft, output shafts and differential gear → Chapter

6 -	Gasket ring for drive shaft

q	removing → Fig.

q	installing → Fig.

7 -	Gasket ring

q	for right flange shaft

q	replace → Chapter

8 -

Washer

q	for differential

q	always 0.65 mm thick

9 -	Outer ring/tapered-roller bearing

q	for differential

q	removing and installing → Chapter

q	if replaced: Adjusting the differential gear → Chapter

10 -	Oil deflecting washer

q	Fitting position: Shoulder on the hole points to the output shaft

11 -	Outer ring/tapered-roller bearing

q	for output shaft gears 1 through 4

q	removing and installing → Chapter

q	if replaced: Setting output shaft gears 1 through 4 → Chapter

12 -	Outer ring/tapered-roller bearing

q	for output shaft 5th/6th and reverse gear

q	removing and installing → Chapter

q	if replaced: Setting output shaft 5th/6th and reverse gear → Chapter

13 -

Washer

q	for output shaft

q	always 0.65 mm thick

14 -	Outer ring/tapered-roller bearing

q	for drive shaft

q	removing and installing → Chapter

q	if replaced: Setting drive shaft → Chapter

15 -

Magnet

q	is held in position by the separator surface of the housing

16 -

Cap

q	not fitted to all clutch housings

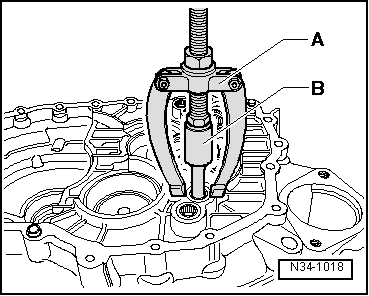

Remove bushing for gear shift rod A -  Countersupport, e.g. -Kukko 22/1- B -  Interior extractor 14.5...18.5 mm, e.g. -Kukko 21/2-

Drive in the bushing for shift rod flush

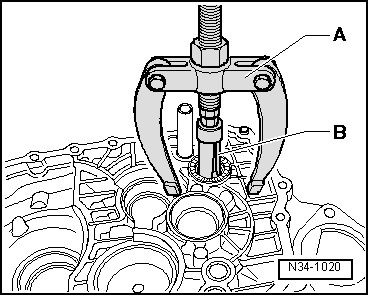

Pull out the needle bushing from the clutch housing A -  Countersupport, e.g. -Kukko 22/2- B -  Interior extractor 23.5...30 mm, e.g. -Kukko 21/4-   Note The needle bushing is damaged when removed and must be replaced.

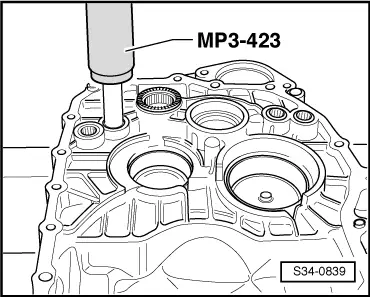

Pressing needle bushing -A- into the clutch housing –  During press-in procedure, position the thrust washer -B- of the reverse shaft onto the needle bushing -A-.

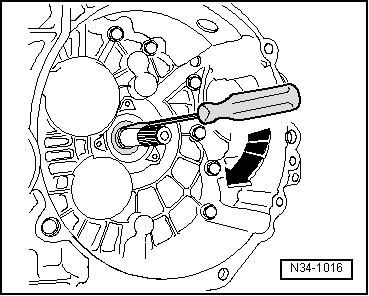

Removing gasket ring for drive shaft –  Carefully lever out gasket ring with screwdriver. Gasket ring can be removed with the bushing -MP3-424- if the gearbox is disassembled.

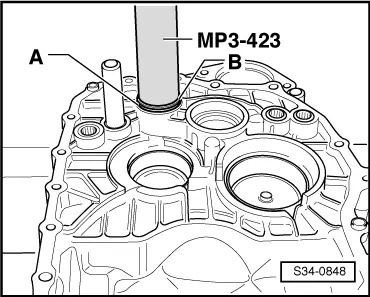

Insert the gasket ring for the drive shaft until flush

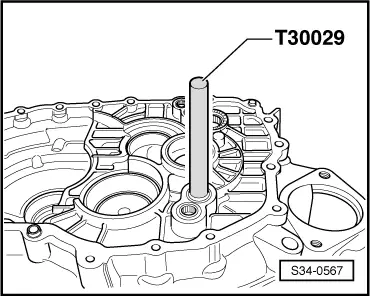

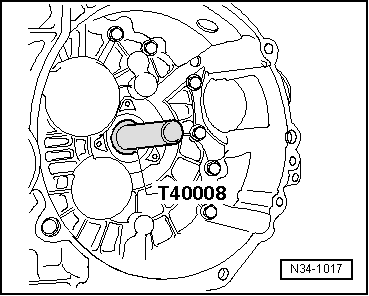

Press shaft for reverse gear shift fork into the clutch housing
