Fabia Mk2

Removing and installing the door
Removing and installing the door
Removing:
–  Switch off the ignition and all electrical components.

–  Pull off the bellows -1- from pillar A.
–  Disconnect plug connection -2-.
–  Remove the screws -6- from the hinges -5- → Chapter.
–  Remove screw -4- from the door arrester -3- → Chapter.
–  Hook out the door upwards.
Installing:
–  Installation is carried out in the reverse order.

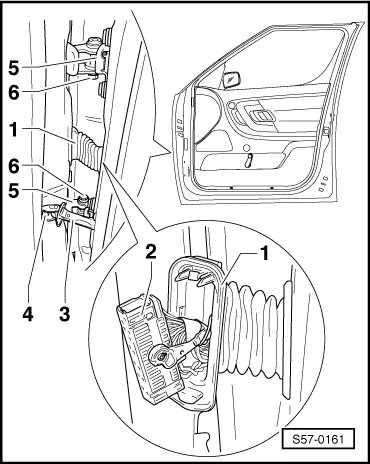

  S57-0161
