| Removing and installing moulded headliner |
| –
| Remove top trim panels of pillars A, B, C, D → Chapter. |
| –
| Remove side trim panel of pillar D in the luggage compartment → Chapter. |
| –
| Unclip clips in rear moulded headliner with removal tool e.g. removal tool for the inner lining of the door panel -MP8-602/1-. |
| –
| Release screw caps on the roof at the cover for the middle seat belt and remove screws (4 Nm). |
| –
| Remove cover and pull through seat belt. |
| –
| Fold back front and rear seat and remove luggage compartment cover. |
| –
| Partially remove inside door seal from above. |
| –

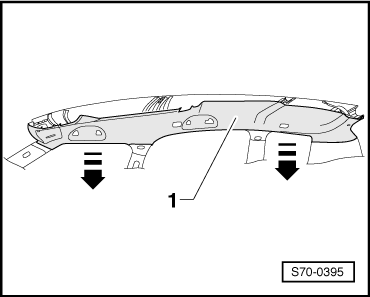

| Lower moulded headliner -1--arrows-. |
| –
| With the assistance of a second mechanic (risk of fracture) remove to the rear from vehicle. |
| –
| Installation is carried out in the reverse order. |
|
|
|
