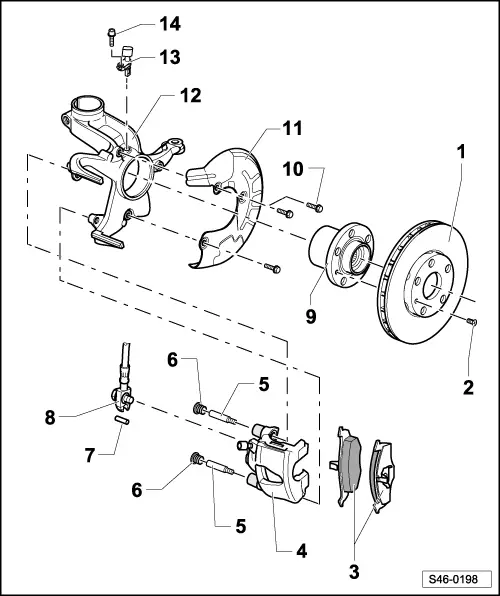

| Summary of components of front brake FS-III |
| 1 - | Brake disc |
| q | Assignment, dimensions and wear limit → Chapter |
| q | always replace axle-wise |
| q | unscrew the brake caliper before removing |
| q | Do not use force to separate the brake discs from the wheel hub, if necessary use rust solvent; as you could otherwise damage the brake discs. |
| 2 - | Screw, 4 Nm |
| 3 - | Brake pads |
| q | with wear indicator (depending on the vehicle equipment, only up to MY 2010) |
| – | with a corresponding wear (limit: 2 to 3 mm) a warning light in the dash panel insert lights up (depending on the vehicle equipment, only up to MY 2010) |
| q | with retaining spring |
| q | Insert the inner brake pad (with the large three-finger clip with metallic gloss and with the marking „piston side“ on the steel supporting plate) on the piston side. |
| q | Thickness, wear limit → Chapter |
| q | Inspect thickness → BookletRoomster |
| q | always replace axle-wise |
| q | do not unscrew the brake line when replacing the brake pad |
| q | removing and installing → Chapter |
| q | Do not exchange the inner brake pad (with the large three-finger clip with metallic gloss and with the marking „piston side“ on the steel supporting plate) and the outer brake pad (with the small black three-finger clip). |
| q | Observe the instructions for changing the pad → Chapter |
| 4 - | Brake caliper |
| q | removing: |
| – | Remove the brake pads → Chapter |
| – | Use brake pedal load |
| – | Unscrew brake hose from brake caliper |
| q | Installing: |
| – | Installing brake pads → Chapter |
| – | Screw the brake hose onto the brake caliper |
| – | Remove brake pedal load |
| – | Bleeding Brake System → Chapter |
| q | repairing → Chapter |
| q | Observe the instructions for changing the pad → Chapter |
| 5 - | Guide bolt, 28 Nm |
| 6 - | Cap |
| q | removing |
| 7 - | Tensioning sleeve |
| 8 - | Brake hose with supports, hollow screw and gasket rings |
| q | must be replaced completely, do not dismantle |
| q | Tightening torque: 35 Nm |
| q | do not unscrew when replacing the brake pad |
| 9 - | Wheel hub with wheel bearing |
| q | for vehicles with ABS the sensor ring is built into the wheel hub |
| q | replace after each removal, is destroyed during removal |
| q | removing and installing up to CW 11 2008 → Chapter |
| q | removing and installing as of CW 12 2008 → Chapter |
| q | Assignment → Electronic Catalogue of Original Parts |
| 10 - | Screw, 10 Nm |
| 11 - | Cover plate |
| 12 - | Wheel-bearing housing |
| 13 - | ABS wheel speed sensor |
| 14 - | Allan screw, 8 Nm |
| q | for speed sensor ABS |
