Fabia Mk2

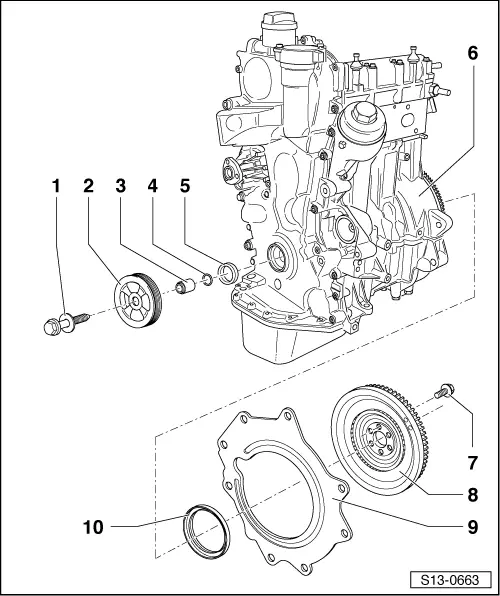

| Removing and installing the gasket ring and flywheel |
Note| t | Repairs to the clutch → gearbox → Rep. Gr.30. |
| t | Secure the removed engine with the engine and gearbox mount -MP1-202 (wie VW540, jedoch für Montageständer MP9-101)- at the assembly stand before performing assembly work. |
| 1 - | 90 Nm + torque a further 90° (1/4 turn) |
| q | replace |
| q | Interlock the crankshaft with assembly device -T10121- for removing and installing → Chapter |
| 2 - | Belt pulley - crankshaft |
| 3 - | Housing |
| q | replace together with O-ring; Pos. 5 |
| q | fit onto cleaned crankshaft |
| 4 - | O-ring |
| q | replace if damaged |
| 5 - | Sealing ring |
| q | for crankshaft on the belt pulley side |
| q | Neither grease nor oil sealing lip of sealing ring |
| q | before installing remove grease residue on the housing with a clean cloth |
| q | replace if damaged → Chapter |
| q | replace together with housing; Pos. 3 |
| 6 - | Cylinder block |
| 7 - | 60 Nm + torque a further 90° (1/4 turn) |
| q | replace |
| q | tighten up in two steps: |
| Stage I = 60 Nm |
| Step II = 90° (1/4 turn) |
| 8 - | Flywheel |
| q | assembly only possible in one position -holes offset- |
| q | Interlock crankshaft flywheel with a assembly device -T10121- for removing and installing it → Chapter |
| 9 - | Intermediate plate |
| q | must be positioned on dowel sleeves |
| q | do not damage/bend during assembly work |
| 10 - | Sealing ring |
| q | replace → Chapter |
| q | for crankshaft on the flywheel side |
| q | Neither grease nor oil sealing lip of sealing ring |
| q | before installing remove grease residue on crankshaft journal with a clean cloth |
