Fabia Mk2

Removing and installing the control motor for air distribution flaps
Removing and installing the control motor for air distribution flaps
Removing
Right-hand drive:
–  Remove heater unit → Chapter.
Left-hand drive:
–  Remove the centre console → Body Work; Rep. gr.68.
–  Removing the dash panel → Body Work; Rep. gr.70.
–  Remove right footwell vent (Tightening torque: 1.5 Nm).
–  Remove the intermediate piece for the defroster duct (2 securing pins) and intermediate piece for dash panel vents (2 retaining clips).
All vehicles:

–  Release screw -1-.
–  Release catches -2- and swivel out the control unit from the housing in the -direction of the arrow-.
Install
  S80-0162

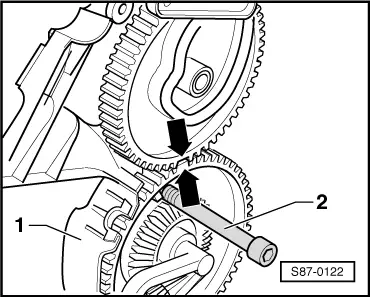

–  Arrest the gear wheels of the control unit.
   To this end turn the gear wheels sufficiently in order to engage the markings -arrows-.
–  In this position insert screw M6 -2- in the opening of the bottom gear wheel and into the housing.
  S87-0122

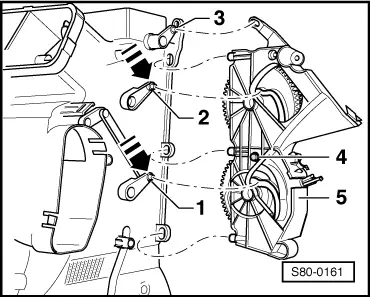

–  Position the flap lever of the footwell vent -1- down -arrow- (flap closed).
–  Position the flap lever of the dash panel vent -2- down -arrow- (flap closed).
–  Position the defrost flap lever -3- in such a way that the defrost flap is fully opened.
–  Insert arrested control unit -5- into the 3 openings of the housing.
–  Position the control unit on the housing in such a way that the lever bolts -1- and -2- engage in the relevant slides of the control unit -5-.
–  Guide the lever bolt -3- in the corresponding opening of the control unit -5-.
  Note
When installing it is possible to view the lever bolt -1- through an inspection hole in the bottom gear wheel.
–  Lock control unit -5- into position.
–  Remove screws -4-.
–  Check operation of the control unit.
It must be possible to adjust all flaps to their end position in a smooth and easy manner.
If the flap adjustment is N.O.K.:
–  Remove control unit and install again - as described above.
If the flap adjustment is O.K.:
–  Screw control unit (1 Nm).
Further installation occurs in reverse order.
  S80-0161
