Removing and installing bracket for auxiliary units
Removing and installing bracket for auxiliary units
(Fabia II, Roomster, Rapid)
Removing
–  Remove alternator → Electrical System; Rep. gr.27.
–  Remove the high pressure pump → Chapter.
On vehicles with air conditioning
  WARNING
Risk of injury through refrigerant.
Do not open the refrigerant circuit of the air conditioning system.
  Caution
Risk of damaging the condenser as well as the refrigerant lines and hoses.
Do not over-tension, buckle or bend refrigerant lines and refrigerant hoses.
–  Remove the AC compressor from the bracket for auxiliary units → Heating, Air Conditioning; Rep. gr.87.

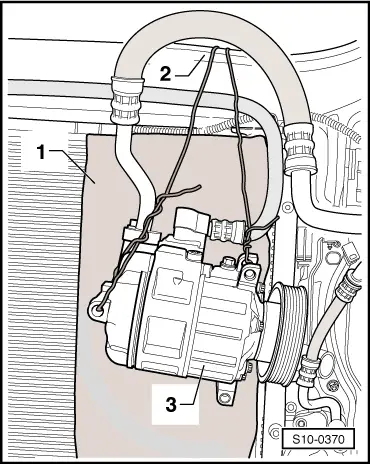

–  Attach the AC compressor -3-, e.g. behind the lock carrier as shown in the figure. As protection put a sheet of cardbord -1- on the radiator wall.
  S10-0370

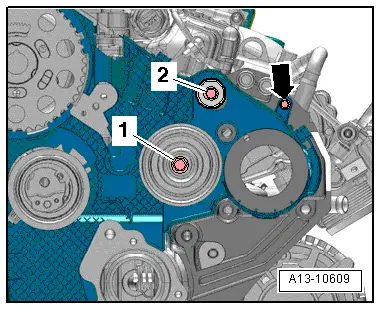

–  Release screw -arrow-.
–  Release screws -1- and -2- and remove toothed belt camshaft drives.
  A13-10609

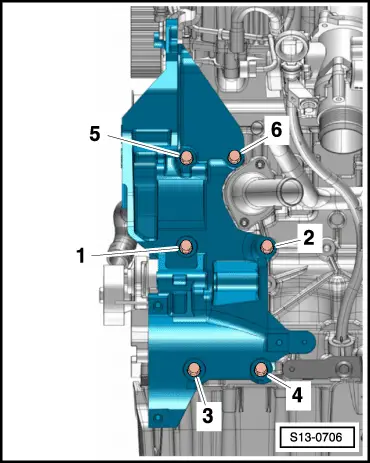

–  Release screws -1 ... 6- and remove bracket for auxiliary units.
Install
Installation is performed in the reverse order, pay attention to the following points:
  Note
Replace screws which have been tightened to a torquing angle.
–  If no dowel sleeves are present on the top right between the bracket for auxiliary units and the cylinder block, insert dowel sleeves.
–  Tighten the fixing screws for the bracket for auxiliary units.
t  On vehicles without air conditioning system → Fig..
t  On vehicles with air conditioning system → Fig..
–  Install high pressure pump → Chapter.
–  Installing the timing belt → Chapter.
–  Install engine support and engine mount:
t  Fabia II, Roomster → Chapter and → Chapter.
t  Rapid → Chapter and → Chapter.
–  Install alternator → Electrical System; Rep. gr.27.
On vehicles with air conditioning
–  Install AC compressor at the bracket for auxiliary units → Chapter.
–  Filling and bleeding the fuel system. For this purpose, connect the vehicle diagnosis, measurement and information system -VAS 505x- and carry out the targeted function „bleeding the fuel system“. During this function, the fuel pump is actuated for 180 seconds.
–  Check fuel system for tightness → Chapter.
  S13-0706
