Fabia Mk2

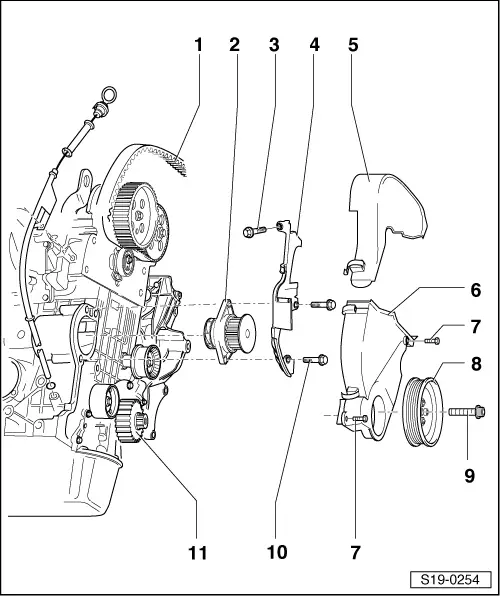

| Coolant pump - Summary of components |
| 1 - | Main drive toothed belt |
| q | before removing mark running direction |
| q | check for wear |
| q | do not kink |
| q | Routing of toothed belt → Chapter |
| q | removing and installing, tensioning → Chapter |
| 2 - | Coolant pump |
| q | check smooth operation |
| q | if damage and leak present, replace complete |
| q | removing and installing → Chapter |
| 3 - | 10 Nm |
| 4 - | Rear toothed belt guard |
| 5 - | Top toothed belt guard |
| 6 - | Bottom toothed belt guard |
| 7 - | 12 Nm |
| q | replace |
| 8 - | Belt pulley |
| q | removing and installing → Chapter |
| q | pay attention to the locating element when installing |
| q | Removing and installing ribbed V-belt → Chapter |
| 9 - | 150 Nm + torque a further 1/2 turn (180°) |
| q | replace |
| q | The contact surfaces of the fixing screw and the belt pulley must be free of grease and oil |
| q | Oil the thread of the screw |
| q | Counterhold belt pulley with counterholder -T30004 (3415)- with bolt -T30004/1 (3415/1)- |
| q | tightening may occur in successive stages |
| q | the torquing angle can be measured with a commercially available angle measuring plate, e.g. -Hazet 6690- |
| 10 - | 20 Nm |
| 11 - | Crankshaft - toothed belt sprocket |
