Octavia Mk1

Replace lock carrier
Replace lock carrier
  Note
There is no need to separate the refrigerant circuit of the engine and the refrigerant circuit if the radiator and condenser are fastened to the engine in a suitable manner.
Removing

–  Removing the bumper → Chapter.
–  Remove cross member → Chapter.
–  Remove headlights → Electrical System → Rep. gr.94
–  Disconnect the plug connection and unhook the cable for the flap lock.

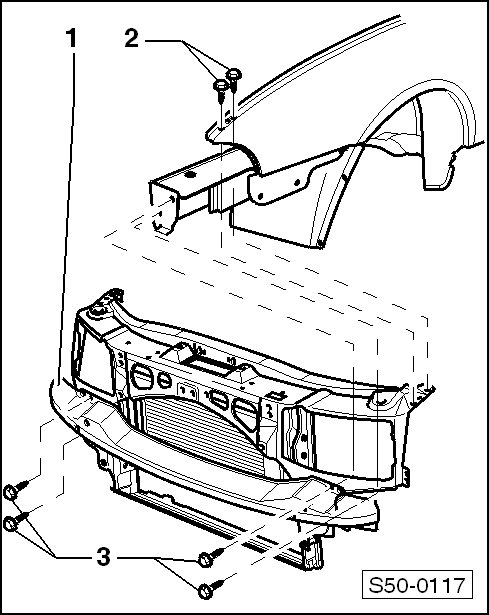

–  Remove the screws -3- for the lock carrier -1-.
–  Slacken top fixing screws -2-.
  S50-0117
–  Unscrew screws -1- for radiator bearing -3- and fasten the radiator -4- to the engine in a suitable manner.
–  Remove top fixing screws for lock carrier.
–  Pull out lock carrier -2- towards the front.
–  Remove the remaining component parts for the lock carrier.
Install
–  Installation is carried out in the reverse order.
  S50-0118
