Octavia Mk1

Remove and install additional brake light (for vehicles Octavia Combi RS)
Remove and install additional brake light (for vehicles Octavia Combi RS)
Special tools and workshop equipment required
t  Universal cleaning solution part no. HHA 381 011
t  Silicone sealant -Würth 892 310 91-
Removing
–  Cut off the upper surface of the additional brake light from the rear spoiler and tear off the additional brake light towards the bottom.
–  Remove additional brake light from the spoiler.
–  Remove the plug for the additional brake light.
Install
–  Clean the seating area of the spoiler as well as the additional brake light with universal cleaning agent HHA 381 011 while observing the instructions for the adhesive cement issued by the manufacturer.

–  Apply silicone sealant -1- to the spoiler while observing the instructions of the manufacturer.
–  Connect the plug for the additional brake light.
–  Insert the additional brake light in the spoiler.
–  Secure position of the additional brake light with adhesive tape.
–  Remove any dirt present using a cleaner.
  Note
t  The adhesive cement must dry for 2 hours. Do not drive the vehicle in this time.
t  Do not drive into the carwash within 24 hours of gluing on the spoiler.

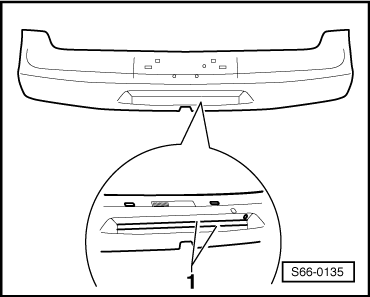

  S66-0135
