Octavia Mk1

Stick on the self-adhesive foils for the doors and the centre pillar
Stick on the self-adhesive foils for the doors and the centre pillar
  Note
Pay attention to the important instructions for glueing self-adhesive foils → Chapter.
–  Lower the front and rear door windows.
–  Partly remove the window seals from the front and rear doors.
Front door

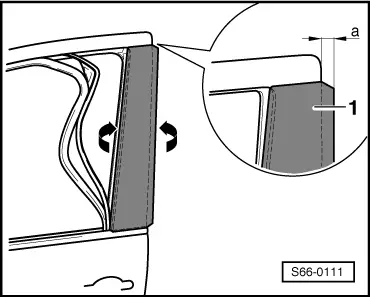

–  Stick foil -1- onto the front door.
–  Place the upper edge of the foil -1- simultaneously with the edge of the window hole, whereby the projection -a- = 5 mm must be kept.
Rear door
–  Stick the foil onto the rear door.
–  Place the upper edge of the foil 1 simultaneously with the edge of the window hole, whereby the projection of 5 mm must be kept.
Centre pillar
–  Stick foil -1- onto the centre pillar.
  S66-0111
–  Position the lower edge of the foil -1- simultaneously with the lower edge of the foil -2--arrows-.
–  Install window seals for the front and rear doors.
–  Pull up the front and rear door windows.
  S66-0118
