Removing and installing the damping foil of the door
Removing and installing the damping foil of the door
The damping foil protects the vehicle interior against noise, water leaking in and draught.

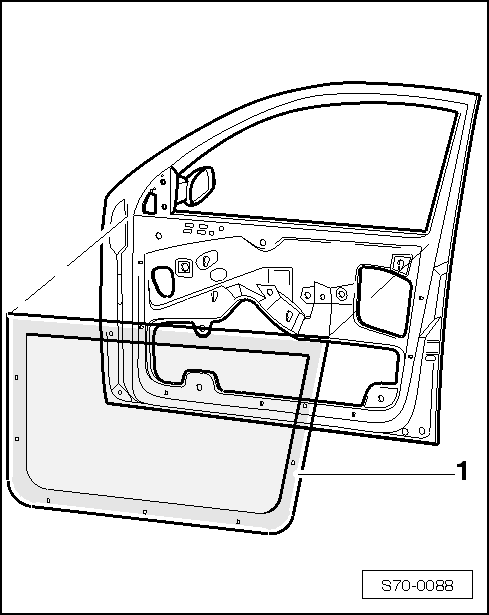

The damping foil -1- must always be carefully glued and crease-free. When replacing, clean the glue benches and glue the new foil crease-free from bottom to top.
If bonding is not adequate, use double-sided adhesive tape e.g. -AKL 434 019 25-.
The bonding surface is shown as latched in the fig.
Removing

–  Remove door trim panel → Chapter or → Chapter.
–  Remove all retaining clips → Chapter or → Chapter.
  S70-0088
