Octavia Mk1
|

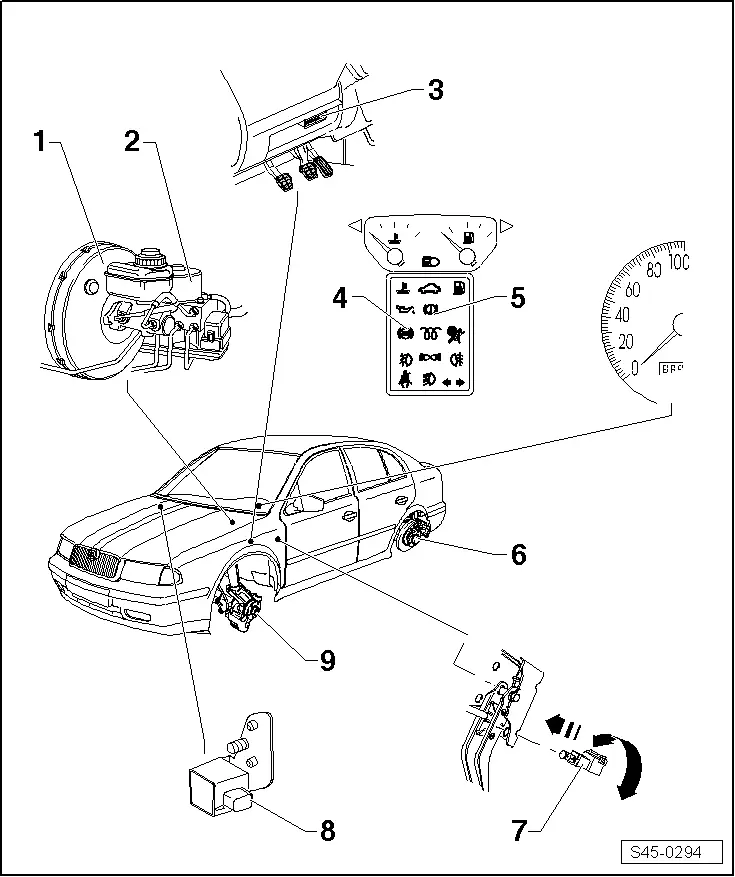

| All the components marked with 1) are covered by the self-diagnosis. |
| 1 - | Brake master cylinder brake servo unit |
| 2 - | Hydraulic control unit 1) |
| t | Fitting position: in left of engine compartment |
| t | removing and installing → Chapter |
| t | repairing → Chapter |
| 3 - | Diagnostic connection |
| t | Fitting location: in the storage compartment on the driver's side |
| 4 - | ABS warning light -K47- |
| t | Fitting location: in the dash panel insert, function: |
| t | The ABS warning light comes on: |
| – | for about 2 seconds after ignition is switched on and/or engine start |
| – | if a fault is detected (e.g. open circuit to wheel speed sensor) → Chapter |
| 5 - | Hand brake/brake fluid level warning light -K14/33- |
| t | Fitting location: in the dash panel insert, function: |
| t | The warning light lights up: |
| – | if hand-brake is applied |
| – | if low brake fluid level |
| – | for about 2 seconds after ignition is switched on |
| – | if the electronic brake pressure distribution fails, i.e. when the ABS warning light comes on → Chapter |
| 6 - | Parts of ABS system on rear axle |
| (only disc brake shown in illustration) |
| t | Rear right and left wheel speed sensors -G44- / -G46-1) |
| – | removing and installing → Chapter |
| – | Installing wheel speed sensor cables → Chapter |
| t | Pulse rotor for the wheel speed sensor at the rear on the right and left |
| – | check → Chapter |
| – | removing and installing: The pulse rotor must be changed together with the wheel hub → Axles, steering; Rep. gr.42. |
| 7 - | Brake light switch -F- |
| t | Brake light switch is open in off position |
| – | setting up to MY 1999 → Chapter, as of MY 2000 → Chapter |
| – | removing and installing up to MY 1999 → Chapter, as of MY 2000 → Chapter |
| t | must be tested in the measured value block → Chapter |
| 8 - | Parts of ABS system on front axle |
| t | Front right and left wheel speed sensors -G45- / -G47-1) |
| – | removing and installing → Chapter |
| – | Installing wheel speed sensor cables → Chapter |
| t | Pulse rotor for the wheel speed sensor at the front on the right and left |
| – | check → Chapter |
| – | removing and installing: The pulse rotor must be changed together with the wheel hub → Axles, steering; Rep. gr.40. |
| 9 - | Longitudinal acceleration sender -G251-1) |
| t | Fitting location: on the central pipe to the right, near the right pillar -A- |
| t | removing and installing → Chapter |
