Removing and installing parts of the lubrication system
Removing and installing parts of the lubrication system
  Note
t  If considerable quantities of metal swarf or abrasion (caused by rubbing damage such as damage to the crankshaft and conrod bearings) is found in the engine oil when carrying out engine repairs, establish the cause, remove the damaged parts and carefully clean the oil galleries and oil chambers in order to avoid consequential damage. Apart from undertaking very careful cleaning of oil channels and oil chambers one should also replace the oil cooler.
t  The oil level must not be above the max. marking - risk of damage to catalytic converter!
t  Testing oil pressure and oil pressure switch → Chapter 17-3.
Check the engine oil condition, oil level and oil specification → Inspection and Maintenance

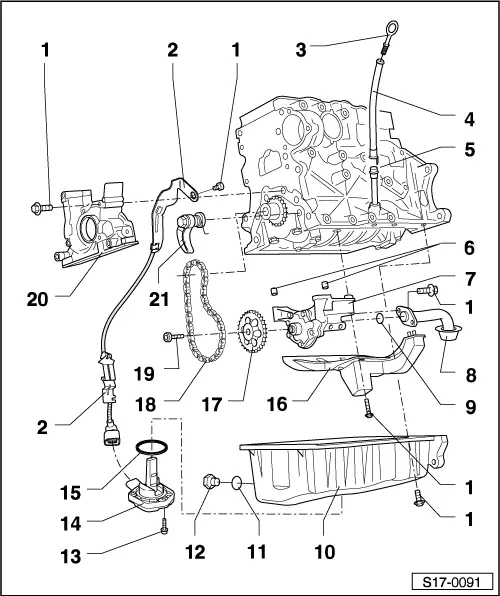

1 - 15 Nm
2 - Support
q   for wiring loom from the oil level and oil temperature sender
q   different versions: screwed on or clipped in
3 - Dipstick
q   oil level must not exceed max. marking!
4 - Filler funnel
q   Remove for extracting oil
5 - Guide tube
6 - Dowel sleeves
7 - Oil pump
q   with pressure relief valve 1.2 MPa (12 bar)
q   before installing, inspect whether the two dowel sleeves → Item for centering oil pump/cylinder block are present
q   If there is any scoring on contact surfaces and gears, replace
8 - Suction line
q   Clean strainer if dirty
9 - O-ring
q   replace
10 - Oil pan
q   clean sealing surface before installing
q   fit with silicone sealant -D 176 404 A2 - → Chapter 17-2
11 - Gasket ring
q   replace
12 - Oil drain plug, 30 Nm
q   Cut open gasket ring if leaking and replace
13 - 10 Nm
14 - Oil level and oil temperature sender -G266-
q   Test → Electrical System; Rep. Gr.90
15 - Gasket ring
q   replace
16 - Baffle
17 - Sprocket
18 - Chain
19 - 20 Nm
20 - Front sealing flange
q   removing and installing → Chapter 13-3
q   insert with silicone sealant -D 176 404 A2 - → Chapter 13-3
q   replace seal for crankshaft at belt pulley side → Chap. 13-3
21 - Chain tensioner with tensioning rail, 15 Nm
q   When installing, pretension spring and attach
